Blue Sea WeatherDeck® 12V DC Waterproof Fuse Panel - Gray 8 Positions

The Blue Sea 12v 4308 WeatherDeck® features 8 fused and illuminated switches in a robust and waterproof panel , ideal for flying bridge and exposed cockpit locations.

Features

• Designed for flybridge and open cockpit applications
• IP67 - protected against immersion up to 1 m for 30 minutes
• Independent label backlighting circuit for remote switching and dimming
• Integrated ATO/ATC fuse based circuit protection
• Each panel can be mounted in four different orientations
• Panel front rated IP67 when properly mounted with watertight mounting gasket
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (red), ON (green), or Blown (no color) circuits. no lights in any position likely indicate there is no power to the panel

Specifications

• Weatherproof: Waterproof
• Positions: 6
• Nominal Voltage: 12V DC
• Circuit Protection: Fuse
• Maximum Amperage: 15A @ 12V DC (per circuit)
• Panel Cumulative Rating: 90A
• Backlit Label: Bicolored LED
• Backlighting Amperage: 10mA /Illuminated Circuit
• Backlighting Voltage: 12V DC
• Material: Reinforced Polycarbonate
• Height: 6.00in (152.4 mm)
• Width: 3.88in (98.55 mm)
• Depth: 2.50in (63.5 mm)
• Weight: 1.15lb (0.52 kg)

Included Accessories

• WeatherDeck Toggle Switch Boot - Black
• WeatherDeck Toggle Switch SPST - ON-OFF
• Waterproof DC Label Kit - 30 Black Square Labels V1
• ATO/ATC Fuse - 15 A

Optional Extra

EasyID Fuses - easyID Fuses

ATO/ATC Fuse - 1 Amp

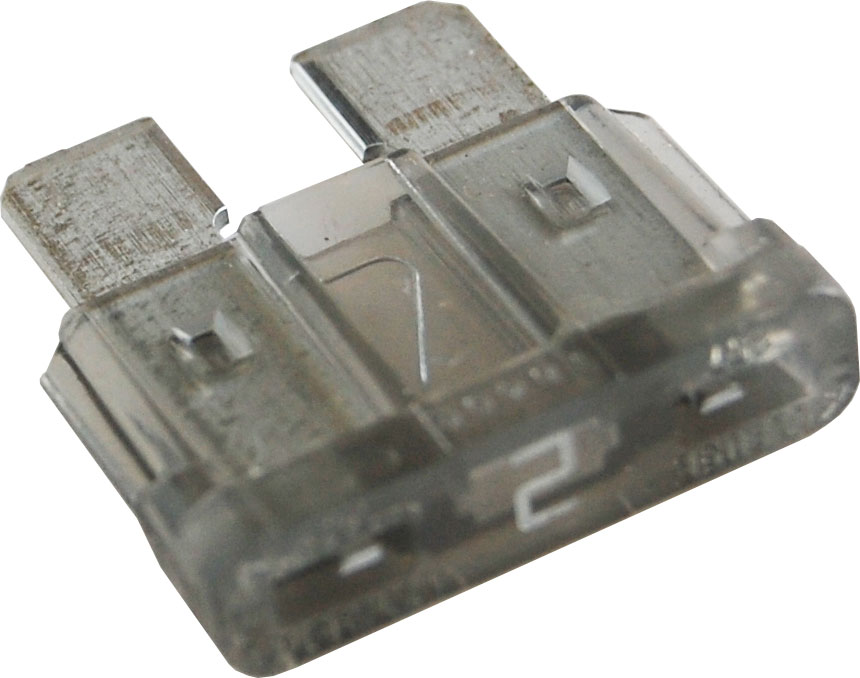

ATO/ATC Fuse - 2 Amp

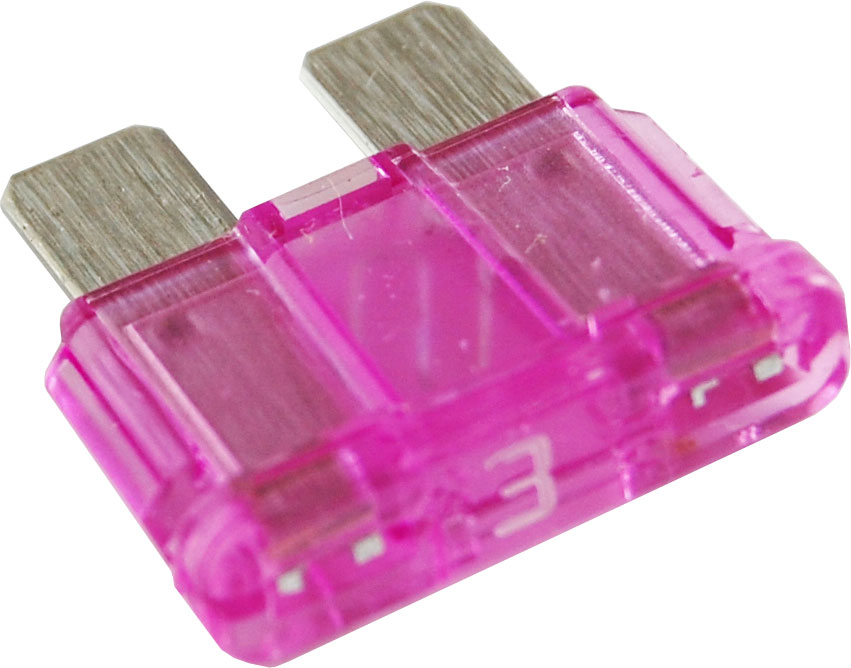

ATO/ATC Fuse - 3 Amp

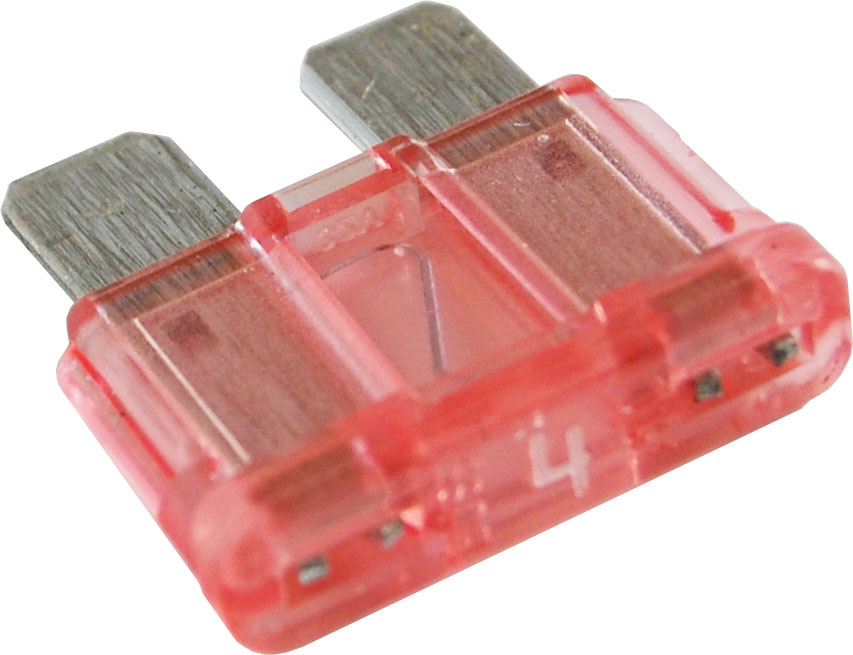

ATO/ATC Fuse - 4 Amp

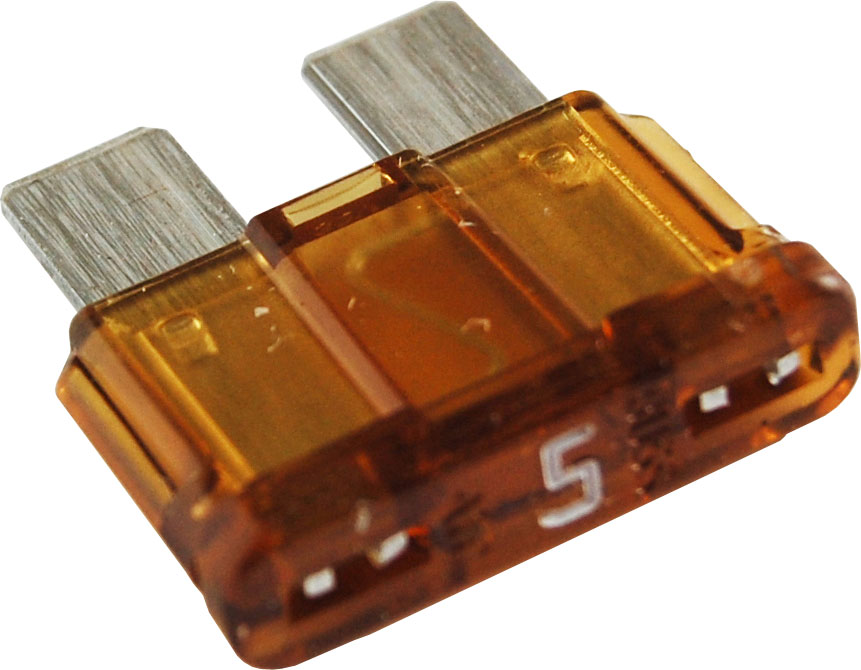

ATO/ATC Fuse - 5 Amp

ATO/ATC Fuse - 7.5 Amp

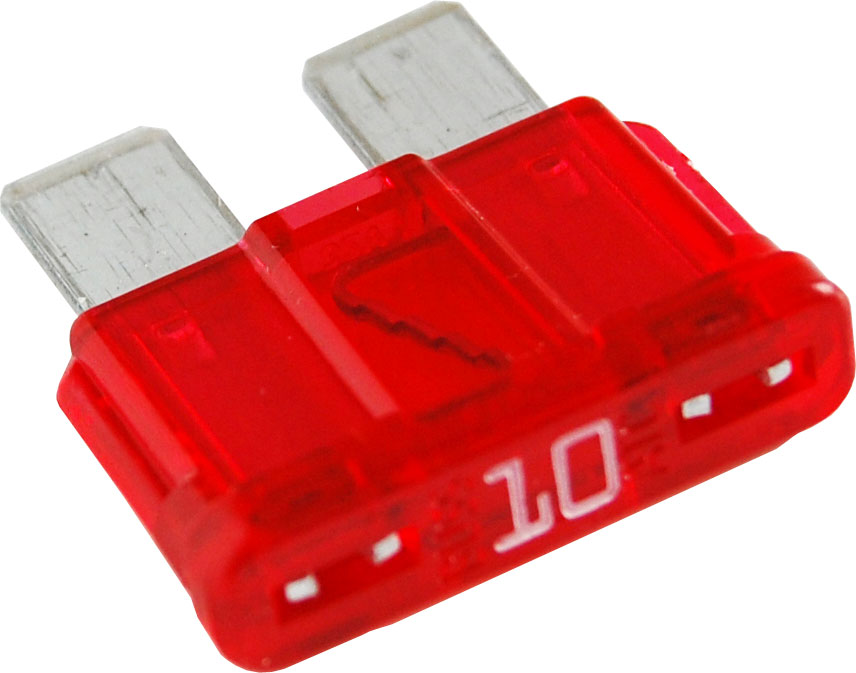

ATO/ATC Fuse - 10 Amp

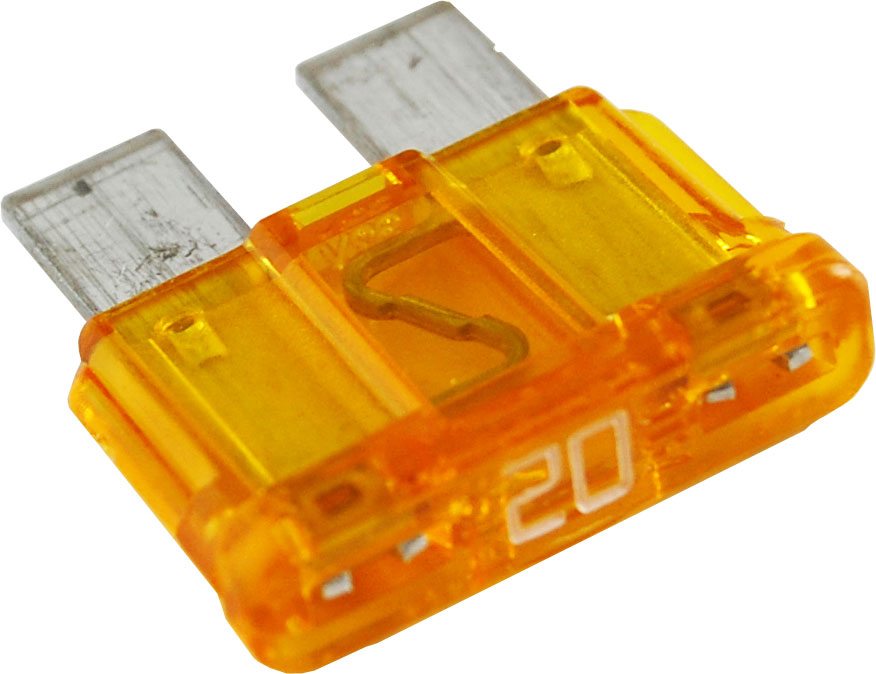

ATO/ATC Fuse - 20 Amp

Technical Files

Instruction Manual

Cutout Template

Application
