Torqeedo

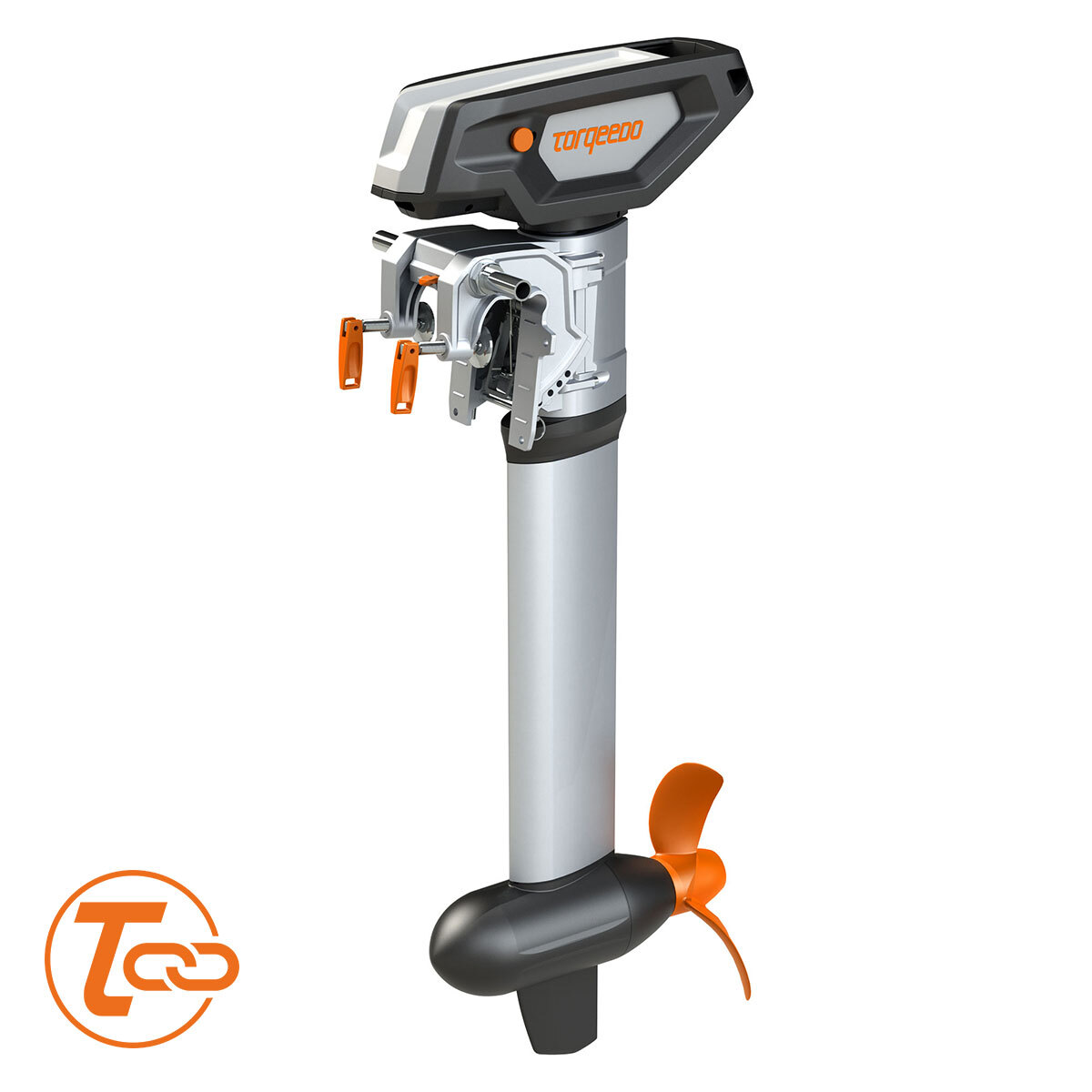

Torqeedo Cruise 6.0 Remote w TorqLink (9.9hp)
- SKU:
- TQ1262-00
- UPC:
- 4260113696712
- Availability:
- Please contact for quotation for complete system
Description
Electric outboard for motorboats and sailboats up to 6 tons, comparable with a 9.9-hp petrol outboard
Power 48-5000 Battery Sold Seperatly
Adding the optional anode kit is recommended for all torqeedo motors, Anode Kit (1905-00)
Key Features
- Maximum efficiency outboard with tiller control
- Improved robustness and improved corrosion protection
- 6,000 W input power, in terms of propulsion is comparable with an 9.9-hp petrol outboard
- Integrated on-board computer with GPS-based range calculation
In the Box
- Outboard with TorqLink data communication
- Connection to remote steering
- Throttle not included (Recommended throttle is part no. 1976-00)
- Cable set (S: 4.0m L: 4.12m, 35 mm²)
- Main switch
- Propeller B 12.5 x 17 HSP
- Emergency magnetic stop key
Description
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users.
All Cruise systems have a built-in GPS with on-board computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon with advanced helical gear design.
Cruise 6.0 is a 48-Volt, 9.9 horsepower-equivalent outboard perfect for boats up to 6 tons. The Cruise 6.0 R ships with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles (sold separately).
Cruise 6.0 is also available in tiller-steered and fixed pod models.
Cruise 6.0 R – Benefits:
- High-efficiency outboard with 6,000 W input power, equivalent to a 9.9 HP petrol outboard
- Pair with Power 48-5000 Battery for best performance and accurate range/runtime functionality
- R model includes remote steering link arm for use with industry standard steering systems
- Your choice of TorqLink throttles (we recommend part number 1976-00 TorqLink throttle with color display)
- Rugged aluminum pylon with integral fin – extra protection when running aground
- Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
- Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater
- Also compatible with third-party batteries (48-volt) but careful matching to motor power requirements is needed and additional cable set part number 1990-00 is required
TorqLink is Torqeedo’s advanced electronics communication system developed for Deep Blue and now available for select Cruise motors, throttles and Power 48-5000 batteries. All products marked TorqLink will communicate seamlessly at startup. A TorqLink Gateway (2217-00) allows you to include components without TorqLink in your system.
Specifications
| Input power in watts | 6000 |
| Propulsive power in watts | 3504 |
| Comparable petrol outboards (propulsive power) | 9.9 HP |
| Comparable petrol outboards (thrust) | 15 HP |
| Maximum overall efficiency in % | 58 |
| Static thrust in lbs* | 230 |
| Nominal voltage | 48 |
| Total weight in kg | 20.6 (S) / 21,0 (L) |
| Shaft length in cm | 62.5 (S) / 75.5 (L) |
| Standard propeller v = speed in km/h at p = power in watts |
Propeller B 12,5 x 17 HSP |
| Alternative propeller options | Propeller B 12 x 13 THR |
| Maximum propeller speed in rpm | 1130 |
| Control | Remote throttle |
| TorqLink | Yes |
| Steering | Provision to connect to standard remote steering; lockable |
| Tilting device | Manual with grounding protection |
| Tilt angle | 360° lockable |
| Trim device | Manual, 4-step |
| Integrated on-board computer | Yes |
| Stepless forward/reverse drive | Yes |
Torqeedo Cruise 3.0/6.0 R Technical Drawing
Torqeedo Cruise 3.0/6.0 R/T Operating Instructions
