Description

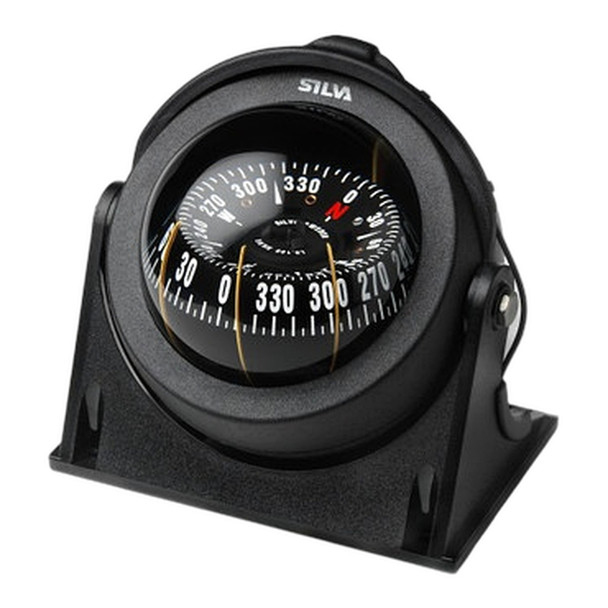

The Silva 100NBC/FBC Compass comes with battery illumination, multiple mounting options, a main steering scale on the horizontal part of the compass rose and direct reading on the vertical edge.
Features
- Ideal for boats with either a sitting or standing helmsman
- Curved lubber lines: Accurate reading from different angles
- Built-in compensator: Deviation compensator so that you always can keep a steady course
- Built-in illumination: Enables night navigation
- Protective cover: Keeps your compass safe from outer damage
Specifications
| Article Number | 37180-0151 |
| Accuracy | ± 0,5° (8.9 mils) |
| Apparent card diameter | 105mm |
| Built-in compensator | Yes |
| Card type | Cone |
| Compatibility | Powerboats |
| Dimensions | 130 x 146 x 95mm |
| Gimballed cradle | Yes |
| Heeling angle | Roll: 30° Pitch: 30° |
| Heeling angle scale | No |
| Illumination | 12V, Red |
| Lubber lines | Centre and 2x side view at 45° |
| Material | ABS, Acrylic |
| Memory ring | No |
| Mounting | Bracket or Flush/bulkhead |
| Mounting angle | 0° to +110° |
| Protective cover | Yes |
| Temperature operating range | -10°C to +70°C |
| Variant | Magnetic North |
| Weight | 1082g |
| Silva part number | 100NBC or 100FBC compass |
Manual
