Description

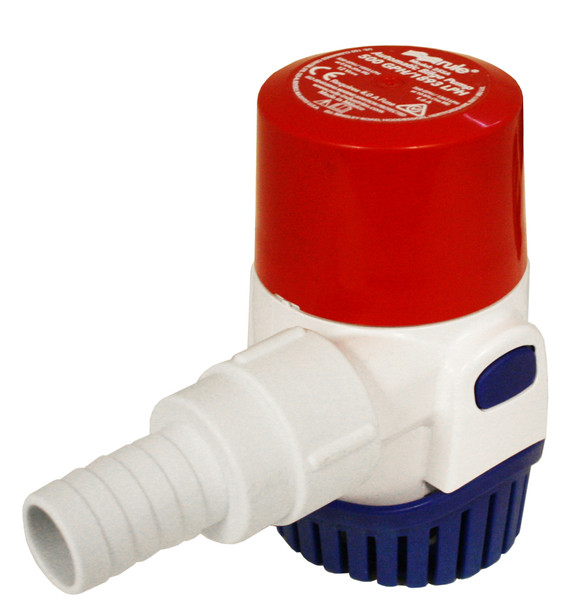

Rule 25SA automatic sensor type submersible pump 12 volt DC supplied with 750mm cable.
The Rule 25SA automatic bilge has a computerised operation and checks for water every 2 1/2 minutes and keep bilge water at the lowest level of any automatic bilge pump. A standard pump and float switch allows water to reach 2" (5cm) before it activates. Rule automatic bilge pumps activate at 5/8" (1.6cm)and drain water down to 1/4" (0.6cm).
Note: Requires a Rule 3 Way Panel switch to complete install
Features
- Fully automated bilge pump with computerised operation
- Higher Flow — optimized impeller to provide greater flow at the same amperage
- Back Flow Prevention — reduces the amount of water flowing back into the bilge, reducing odor and helping keep your bilge cleaner
- Hidden Air Vents in the Body — helps prevent air locking in challenging plumbing installations
- Threaded Discharge — allows for different discharge port size
- Tough plastic body with integral strainer
- Quick release strainer allows rapid cleaning
Specifications
- Voltage: 12volt
- Amps: @ 12v 1.6(amp)
- Fuse Size: 4(amp)
- Connections: For 19mm (3/4") bore hose
- Output: Up to 31 litres/minute (7 gallons/minute)
- Wiring: 3 Wire System – Requires On-Off-Auto Panel Switch to compete install
- Output: Up to 31 litres/minute (7 gallons/minute) at 12v, without check valve
- Max:. recommended discharge head 2m
Dimensions
- Dimensions: 107mm high, 64mm long, 74mm wide
