Roca AISI304 Friction Hinge 38 x 76 mm Standard Opening - 449103

Roca premium quality friction hinges, 38×76 mm for use in marine environments. Friction hinges are designed to eliminate the need for gas shocks or hatch springs in some applications. Friction is built into the barrel of the hinge using patented technology from GEM.

Holds open hatches, live well lids, radio boxes, and many more applications.

Features

• Stainless steel (AISI304)and Bronze compnents
• Electro polished finish
• Standard opening  (Available in reverse angle )
• Max 180° Angle
• 3 Hole fixing per side

Recommended Fasteners

SOW1469 Sowester A4 Self Tapping Screws  8 x 3/4"

SOW1470 Sowester A4 Self Tapping Screws  8 x 1"

Sowester 4mm CSK Set Screws ( Nuts & Bolts)

Dimensions

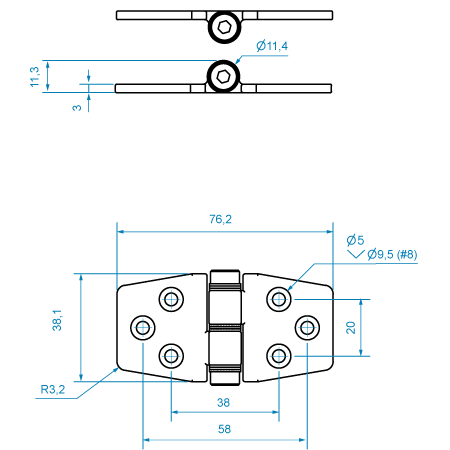

Note this diagram shows Standard 180° Angle and 110° Reverse Angle Hinge dimensions and layout
