Racor

Racor Duplex 900 Turbine Fuel Filter 10 Micron Clear Bowl -75900VMA10

SKU:
RAC75900VMA10
UPC:
706672011565
€2,651.57

Description

The Racor Marine Fuel Filter Water Separator Turbine Series is the most trusted fuel filter water separator on the market. The UL-approved assembly features a three-stage filtration system that effectively removes water and particulates from fuel, providing maximum protection of diesel engine components in marine applications where reliability is critical.

Racor marine fuel filter water separators are available in a wide range of configurations to meet the unique requirements of customer’s engines. All models utilize Racor’s proprietary Aquabloc® filtration elements. Aquabloc® is a unique engineered media that incorporates pleat-spacing corrugations and a graduated pore structure to increase dirt-holding capacity and extend filter life. The media is waterproof and rustproof, capturing contaminants while the specially treated surface separates and coalesces water from the fuel, which causes the water to gather into large droplets that then fall into the clear collection bowl.


Aquabloc® 10 Micron Elements

10 micron (98%@10 micron) - Captures more contaminants than 30 micron elements, and is more effective at stopping water. Extends the life of the entire fuel system.

Specifications

Part Type: 900 Marine Dual Turbine Assembly
Micron Rating: 98% @ 10 Micron
Product Type: Turbine Marine Filter Housing
Valve Type: Integrated Isolation Valve
Flow Rate: 180 gph (681 lph)
Bowl Type: Bowl: Clear Engineering Plastic with Stainless Steel



Dimensions

  • Height 457mm
  • Width 476 mm
  • Depth 279mm
  • Element Removal Clearance:5 in / 12.7 cm inch
  • Port Size:1 5/16”-12 UN-2B (SAE 1926-1) 2X 3/4” NPTF Adapters Supplied 2X Port Plugs Supplied
  • Weight 10kg

 Replacement Elements

 Genuine replacement Racor Aquabloc Filters


Racor 2040PM 30 micron Click to buy here

Racor 2040TM 10 micron Click to buy here

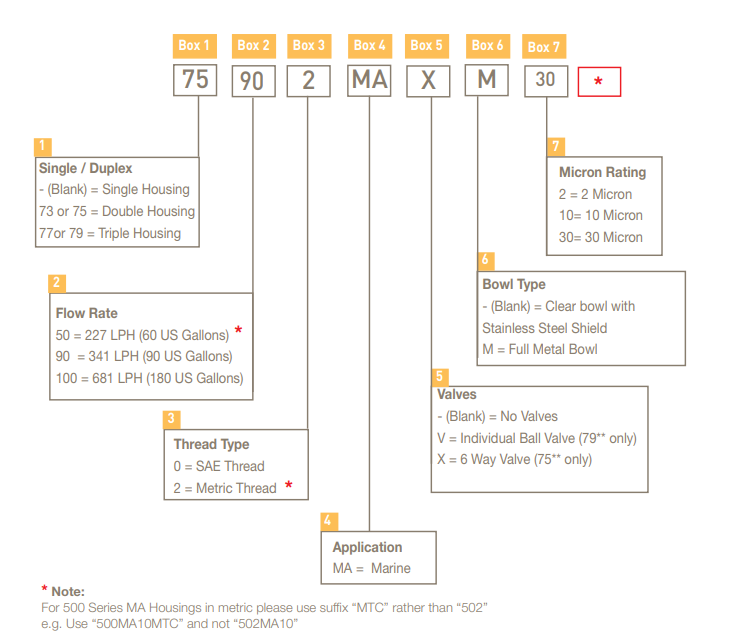

How to identify a Racor Turbine Series Fuel Filter / Water Separator
