Racor Compact Inline Pre-Filter 025-RAC-01 - Petrol /Diesel

Racor 025-RAC-01 Inline Pre-filters install quickly and help protect engines and extend on-board filtration system life by removing water and contaminants early from fuel, including sand, dirt, and silica

Solid particulates and free water are practically unavoidable in diesel fuel and gasoline. Their presence often leads to the formation of bacteria, corrosive acids, and rust, which can cause plugged filters, damaged components, decreased combustion efficiency, and engine downtime.

Racor 025 Series fuel Pre-filters are the first line of defense in protecting against engine damage by keeping fuel clean and dry. These small strainers/pre filters feature a heavy-duty die-cast aluminum mounting head, a ~250 micron cleanable nylon mesh screen  and a reusable see-thru water and sediment collection bowl

Technical Specification

• Use for Diesel or Petrol
• Media- 250 micron cleanable plastic screen
• Port:¼”-18 NPTF Ports
• Flow rate 15 gph (57 lph) with diesel
• Flow rate 25 gph (95 lph) with gasoline
• Easy cartridge element, spin-on bowl servicing
• Construction: Die-cast aluminum head, nylon bowl

Dimensions

• Height:4.3 in / 10.9 cm
• Width:2.3 in / 5.8 cm
• Depth:2.1 in / 5.3 cm
• Element Removal Clearance:3" (7.6 cm) inch

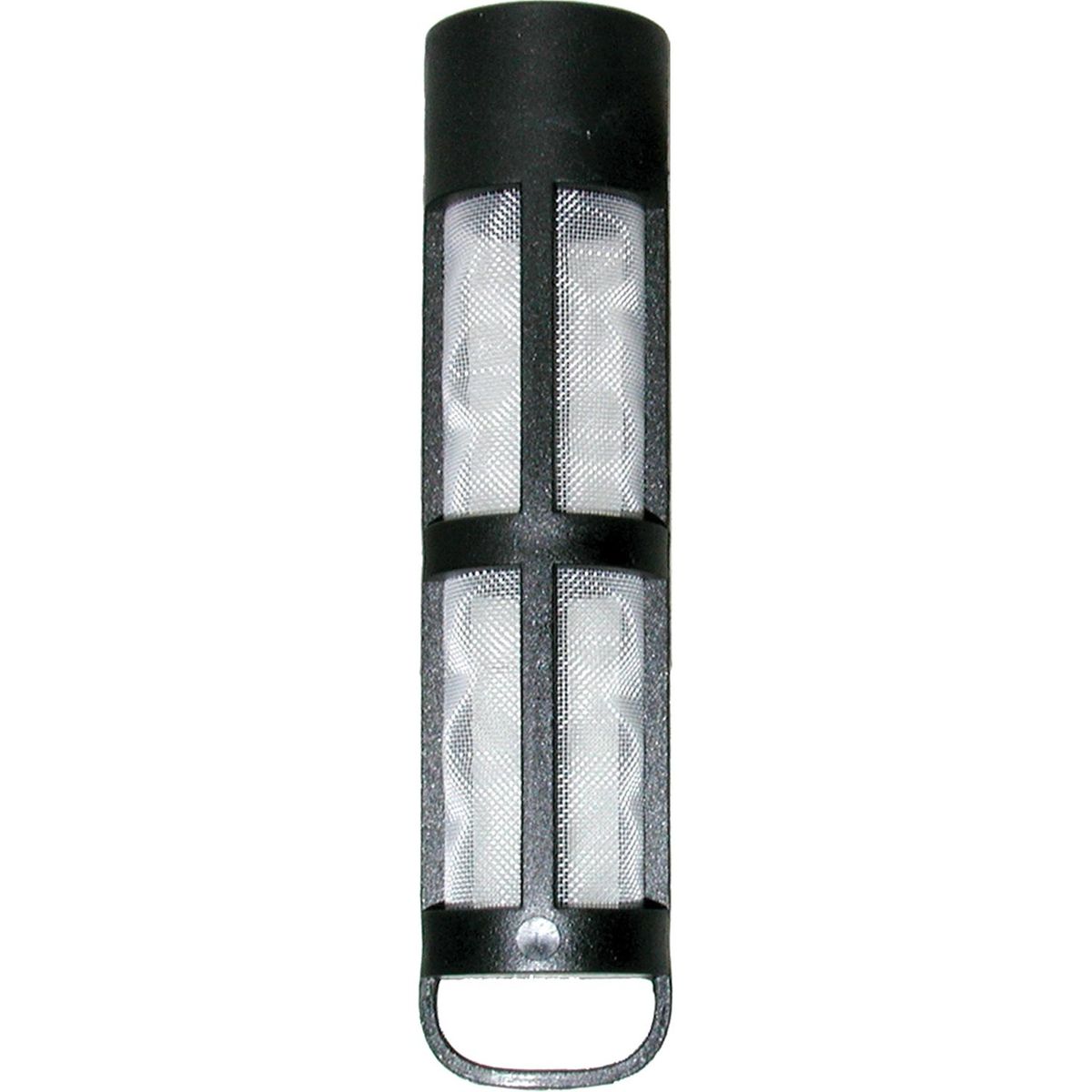

Replacement element

Racor S2501
