Plastimo

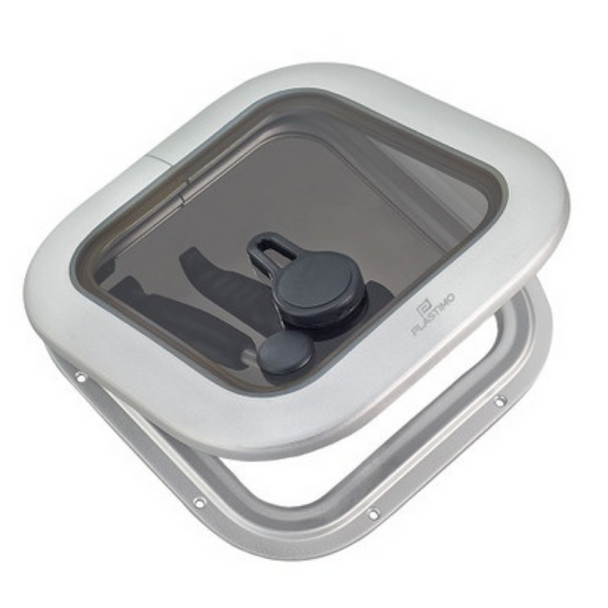

Plastimo Aluminium Acrylic Deck Hatch - Ext Size 320 x 320mm
- SKU:
- P63883
- UPC:
- 3162420638830
Description
These Plastimo deck hatches feature low profile, satin-finish aluminium frames with grey acrylic glass. They are designed for optimum watertightness, ease of installation and to give a stylish look.
Features
- Satin-finish aluminium frame and grey acrylic glass,
- Concealed aluminium hinges,
- One-piece aluminium lid with a thick frame section to provide optimum rigidity,
- Deck-hugging lid height, as slim as 19 mm to accommodate teak decks.
- Telescopic stay
Locking Handles
The ergonomic shape of the handles are unobtrusive and have a smooth a positive movement. They feature a lock catch which prevents breaking in from outside and so no neeed to fit any other locking system from outside.
Dimensions
- External: 320 x 320mm
- Internal: 258 x 258mm
- Cut-out dimesions: 260 x 260mm
- Acrylic thickness 10 mm
- Height below deck: 15 mm
- Corner Radius 42.5 mm (1.7 ").
- Weight 2.7kg
