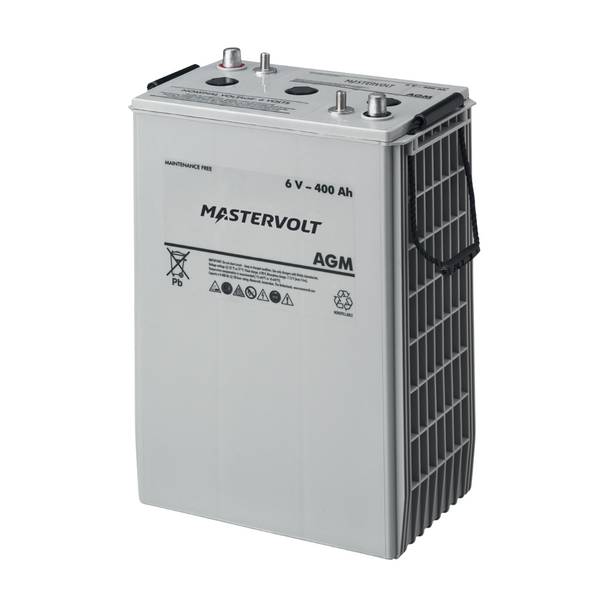

Mastervolt AGM Battery - 6V/400Ah

In AGM batteries, the electrolyte (mixture of water and sulphuric acid) is largely absorbed in glass fibre. This type of battery is entirely maintenance-free and there is no gas formation with normal use. Not requiring any ventilation, these batteries can be installed anywhere.

Their construction gives a very fast discharge at very high currents so AGM batteries are ideal for systems that require high currents (for instance when starting an engine). The battery poles can be unscrewed and this type of battery can be combined with every standard battery terminal.

Features

• Double pole for easy installation
• No gas formation with normal use
• Offers an alternative solution in placement and dimensioning
• Easy configuration of 12/24/48 V battery banks, with high capacity

General Specifications

• Nominal battery voltage: 6 V
• Nominal battery capacity C20 (battery capacity at a discharge time of 20 hours, till 10.5 V per battery): 400 Ah
• Maximum charge current: 110 A
• Battery terminals: A-type + stud M10
• Maximum outer dimensions (incl. terminals/grip handles) (L x W x H): 295 mm (11.6") x 180 mm (7.1") x 428 mm (16.9")
• Weight: 53 kg

Technical Specifications

• CCA to DIN: 620 A
• CCA to SAE: 1100 A

Optional Extra

1. Masterlink BTM-III MV70403163

2. Masterlink MICC MV70403105

3. BattMan Lite MV70405060

4. BattMan Pro MV70405070

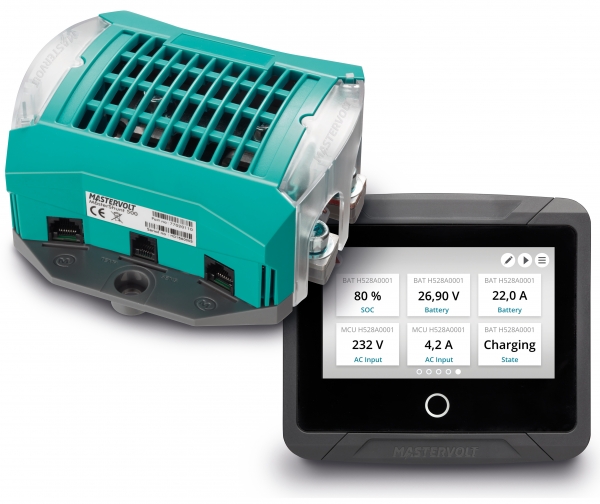

5. MasterShunt + EasyView 5 MV77020110 + MV77010310

Technical Files

Dimension Drawing
User Manual
Certificates
Safety Data Sheet
