Lowrance

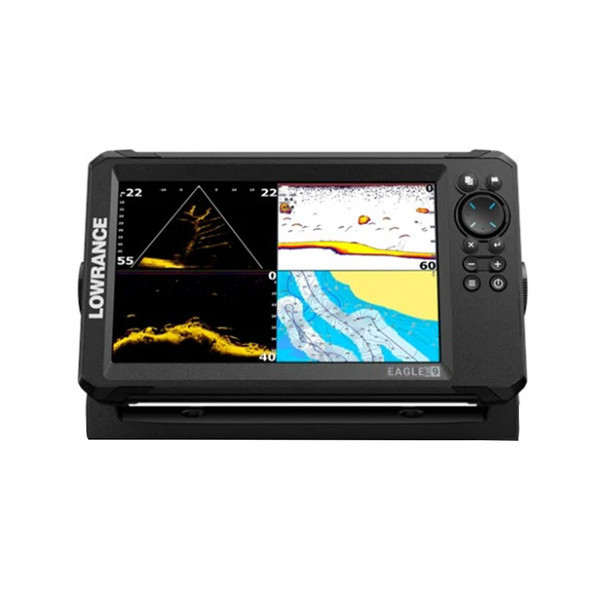

Lowrance Eagle Eye 9 with Livescope Foward View Transducer

SKU:
NAV-000-16130-001
Availability:
New Product Coming Soon!
  • Lowrance Eagle Eye 9  Forward & Down Sonar -  000-16130-001
  • Lowrance Eagle 9 Rear Connections
  • Lowrance Eagle 9 Sonar Page
€1,465.00
  •  Lowrance Eagle 9 SunCover
  • C-Map EW-Y200-MS Ireland and UK Chart
  • Navionics Chart MSD/SD Card

Awaiting stock!

Description

The Lowrance Eagle Eye™ is the world's most accessible fish finder with live sonar. Focused forward and down live sonar combines with CHIRP & DownScan Imaging™ in one transducer, along with detailed C-MAP® charting options on a crystal clear IPS display.

Key Features

  • 4 sonar views from a single transducer with no module needed (Live Forward, Live Down, CHIRP Sonar, DownScan Imaging™ with FishReveal™)
  • Autotuning live sonar with focused down and forward views
  • Detailed C-MAP® chart options feat. Genesis® Live
  • IPS screen, viewable from all angles, even in polarized glasses
  • New reliable twist-lock connector system for easy installation in any boat or kayak
  • SD card slot for software updates, Genesis Live recording and charting add-ons.
  • See fish hiding in cover with FishReveal™ mode
  • Increase contrast and viewability with all-new Imaging color palettes

Designed For Fishing

NEW IPS Screens

See clearly wherever you go with a new IPS screen, offering improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.

IPS Screen.jpg

NEW Connector System

Set up in an instant with Eagle’s improved twist-locking connector, promising an easy installation and removal every time.

Connector System.jpg

One-Year Warranty

Our priority is to give you superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind thanks to our one-year warranty guarantee.

Full Flexibility

The highly-focused live sonar combines with CHIRP and DownScan Imaging™ with FishReveal™ in a single transducer, giving you true Eagle-like vision for any kind of fishing.



FishReveal

Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.

FishReveal Desktop.png

Detailed Charting

Pre-loaded with worldwide basemap you have the options to upgrade to C-MAP DISCOVER®  or other charting providers. With Eagle, you have the options you need to discover and navigate to the best fishing spots, how you want to.

DISCOVER OnBoard Desktop.png

Genesis Live

Know your local waters better than anyone with the ability to create custom ½-foot contour maps of your local lake or uncharted water in real time.

Genesis Live Desktop.png

Specifications

Display
  • Backlight ColorPure white LED
  • Display Resolution1024 x 600
  • Display Size9 inches
  • Screen Brightness1000 NITS
  • Viewing Angles85° top/bottom, 85° left/right
Connectivity
SD Card Storage1 slot (microSD® 32 GB maximum)
Cartography
Charts supportedC-MAP® DISCOVER™.
Electrical
  • Power Consumption max650 mA @ 12 V DC with backlight on full
  • Power Consumption typical650 mA @ 12 V DC with backlight on full
  • Recommended Fuse Rating3A
  • Supply Voltage12v DC (10.8-17VDC)
Environment
Humidity66°C, 95% relative humidity (RH) for 48 hours
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
WaterproofratingIPX7 with card door closed
GPS
CorrectionSBAS
Time to First Fix45s
MFD
Cartography includedWorldwide basemap chart
Waypoints, Routes, Tracks3000 Waypoints 100 Routes 100 Trails
Physical
  • Compass Safe12" (300mm)
  • Dimensions W x H x D287.2 mm (11.30") x 162.5 mm (6.39") x 90 (3.54)
  • Mounting TypeGimbal bracket or dash mount
  • Weight0.9 kg (1.98 lb)
Other
InterfaceKeypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
Warranty Period1 Year + 4 additional years of upgrade options totaling 5 years
View AllClose

Warranty Information

1 Year + 4 additional years of upgrade options totaling 5 years
