Lowrance Eagle 7 TripleShot HD Transducer

Key Features

• Enhanced TripleShot™ HD Transducer with Autotuning sonar
• Worldwide basemap IPS screen, viewable from all angles, even in polarized glasses
• New reliable twist-lock connector system for easy installation in any boat or kayak
• SD card slot for software updates, Genesis Live recording and charting add-ons.
• See fish hiding in cover with FishReveal™ mode
• Increase contrast and viewability with all-new Imaging color palettes

Designed For Fishing

NEW IPS Screens

See clearly wherever you go with a new IPS screen, offering improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.

NEW Connector System

Set up in an instant with Eagle’s improved twist-locking connector, promising an easy installation and removal every time.

One-Year Warranty

Our priority is to give you superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind thanks to our one-year warranty guarantee.

NEW TripleShotShot™ HD Transducer

Give yourself the best chance of finding fish with underwater views to the side and below the boat, all in one transducer. TripleShot HD features the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from SideScan and DownScan Imaging™.

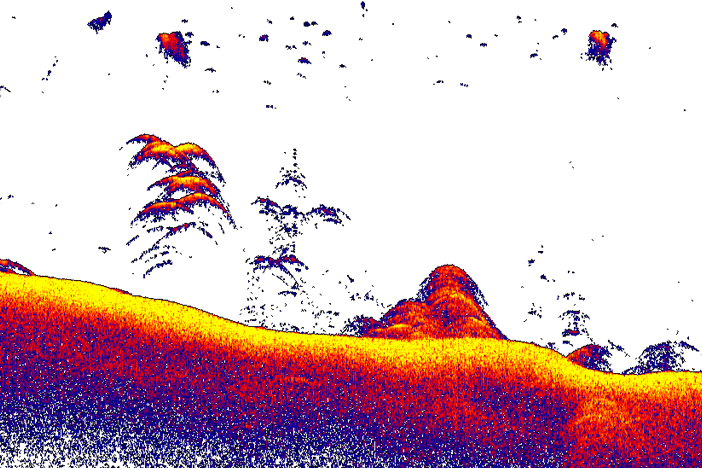

CHIRP Sonar

DownScan Imaging

SIDESCAN IMAGING

FishReveal™

Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.

Detailed Charting

Pre-loaded with worldwide basemap you have the options to upgrade to C-MAP DISCOVER^®  or other charting providers. With Eagle, you have the options you need to discover and navigate to the best fishing spots, how you want to.

Genesis Live

Know your local waters better than anyone with the ability to create custom ½-foot contour maps of your local lake or uncharted water in real time.

Specifications

• Backlight Color : Pure white LED
• Display Resolution : 800 x 480
• Display Size : 7 inches
• Screen Brightness : 1000 NITS
• Viewing Angles : 80° top/bottom, 80° left/right

• SD Card Storage : 1 slot (microSD® 32 GB maximum)

• Charts supported : C-MAP® DISCOVER™

• Power Consumption max : 550 mA @ 12 V DC with backlight on full
• Power Consumption min : 250 mA @ 12 V DC with backlight off
• Power Consumption typical : 550 mA @ 12 V DC with backlight on full
• Recommended Fuse Rating : 3A
• Supply Voltage : 12v DC (10.8-17VDC)

• Humidity : 60°C, 95% relative humidity (RH) for 48 hours
• Operating Temperature Range : 5°F to 131°F (-15°C to 55°C )
• Storage Temperature Range : 4°F to 140°F (-20°C to 60°C )
• Waterproofrating : IPX7 with card door closed

• Correction : SBAS
• Time to First Fix : 45s

• Cartography included : Worldwide basemap chart
• Waypoints, Routes, Tracks : 3000 Waypoints 100 Routes 100 Trails

• Compass Safe : 12" (300mm)
• Dimensions W x H x D : 225.9 mm (8.89") x 139.8 mm (5.5") x 88.5 (3.48)
• Mounting Type : Gimbal bracket or dash mount
• Weight : 0.67 kg (1.48 lb)

• Interface : Keypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
• Warranty Period : 1 Year + 4 additional years of upgrade options totaling 5 years
