Description
This Lewmar Size 64 Low Profile D Hatch with grey acrylic glass has soft styling and sleek looks, and is standard fit on many production powerboats and sailing yachts Size 600mm width x 500m depth
Features
■ Outside handles allow the hatch to be opened from on deck if it is not locked
■ Low profile hatches open up to 180°
■ Friction levers hold the lid open in any position up to 95°
■ Anodised aluminium frame for corrosion resistance
■ Curved upper frame profile for strength as well as modern styling
■ D-Hatch configuration
■ Full range of spare parts available

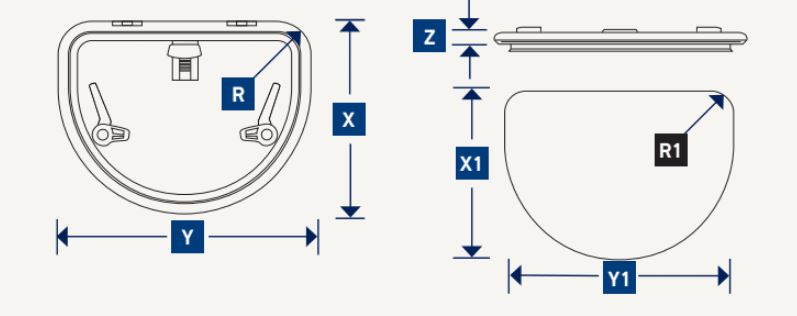

Dimensions
| Support System | Lower Frame (mm) | Acrylic Colour | Hatch Weight (kg) | Acrylic Window Thickness (mm) |
|---|---|---|---|---|
| Self Supporting | 15 | Smoke Grey | 6.4 | 8 |
|
Length X (mm) |
Width Y (mm) |
Height H (mm) |
Radii R (mm) |
Cut-Out Length X1 (mm) |
Cut-Out Width Y1 (mm) |
Cut-Out Radii R1 (mm) |
|---|---|---|---|---|---|---|
| 500 | 600 | 25 | 72.5 | 430 | 530 | 42.5 |
Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm.
Fastening size at hinge section use (M6 / 1/4").
Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
