Jabsco Par Max HD6 Heavy Duty Water Pressure Pump 60PSI - 24 Volt

Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of exceptional service in applications both large and small. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum end bells and lower housing to improve pressure capability and life

The Jabsco Par Max HD6 is a very high capacity fresh water pressure pump delivering 23 lpm at 60 PSI. This model is suitable for larger vessels with 2 Showers and up to a total of 6 outlets -The HD6 is equipped with a bypass, which enables smoother flow and decreases cycling.

60 PSI or 4.1 Bar equates to the top end pressure range found in  domestic homes and brings that level invigorating water pressure on board - Care should be taken to ensure all components and appliances are approved to work to this pressure.

All Par Max Pumps are now supplied with a Pump Guard Strainer

Feature

• 23 LPM (6 GPM) - Is Jabsco largest and most powerful water pressure pump, great for those long runs!
• Co-molded diaphragm technology for long life and durability
• HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Runs Dry Without Damage
• Self‐Priming
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

In the Box

• Pump Unit: Jabsco PARMAX HD6 24V 6GPM ( 23 LPM) 60PSI Pump
• Port Fittings: 2 x 3/4" ( 20mm)Straight Hose barbs
• Strainer: 90 Degree Quick Connect; 40 mesh

Specifications

• Self-Priming: Up to 7ft (2.1m) dry prime
• Flow output: 5GPM (15 LPM)
• Fitting straight hose barbs (Two): 3/4" (20 mm)
• Pressure switch cuts out at: 4.1 bar (60psi)
• Max Inlet Pressure: 2.1 bar ( 30)PSI

• Nominal Voltage: 24 VDC

• Max Current Draw: 9 Amps
• Fuse Sizes: 15Amps - Not included
• Leads: 12" (305mm), 14 AWG (2.5mm^2)
• Internal Bypass: Yes
• IP Rating: IPX6

Typical Installation

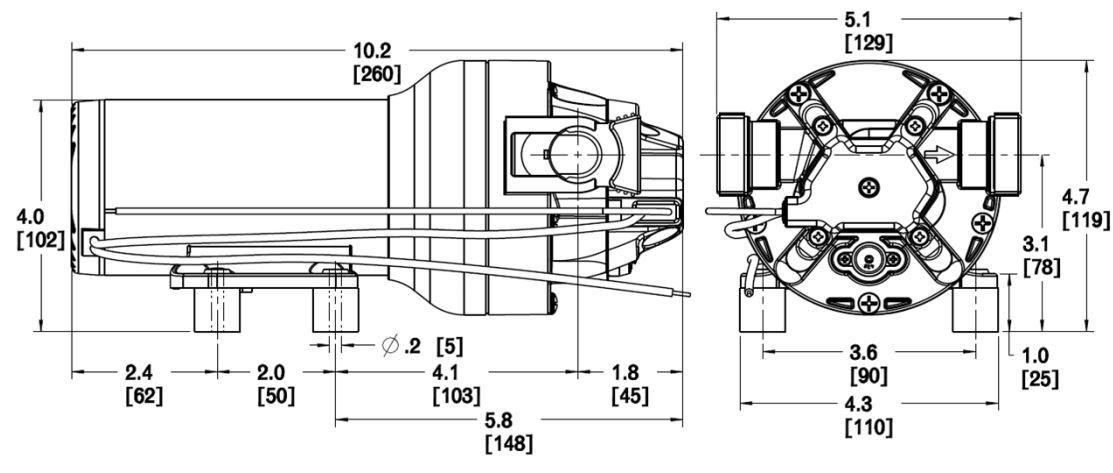

Dimensions
