Jabsco Par Max HD5 Water Pressure Pump 60PSI - 12 Volt

Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of exceptional service in applications both large and small. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum end bells and lower housing to improve pressure capability and life

The Jabsco Par Max HD5 is a high capacity fresh water pressure pump delivering 19 lpm at 60 PSI. This model is suitable for larger vessels with 2 Showers and up to a total of 5 outlet, the 60 PSI will ensure showers have and impressive and invigorating performance.

All Par Max Pump are now supplied with a Pump Guard Strainer

Feature

• 19 LPM (5 GPM)
• Co-molded diaphragm technology for long life and durability
• HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Runs Dry Without Damage
• Self‐Priming
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

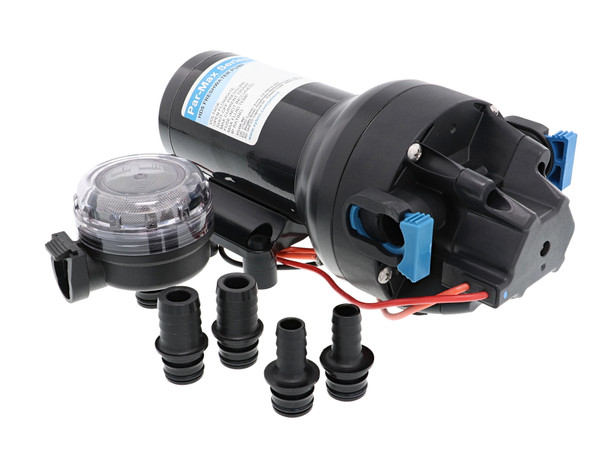

In the Box

• Pump Unit: Jabsco PARMAX HD5 12V 5GPM ( 19 LPM) 40PSI Pump
• Port Fittings: 2 x 1/2" (13mm) & 2 x 3/4" (  20mm)Straight Hose barbs
• Strainer: 90 Degree Quick Connect; 40 mesh

Specifications

• Self-Priming: Up to 8ft (2.4m) dry prime
• Flow output: 5GPM (15 LPM)
• Fitting straight hose barbs (Two): 1/2" (13 mm)
• Pressure switch cuts out at: 4.1 bar (60 psi)
• Max Inlet Pressure: 2.1 bar ( 30)PSI

• Nominal Voltage: 12 VDC

• Voltage Range: 9 VDC ‐ 13.6 VDC
• Max Current Draw: 13 Amps
• Fuse Sizes: 20 Amps - Not included
• Leads: 12" (305mm), 14 AWG (2.5mm^2)
• IP Rating: IPX6

Typical Installation

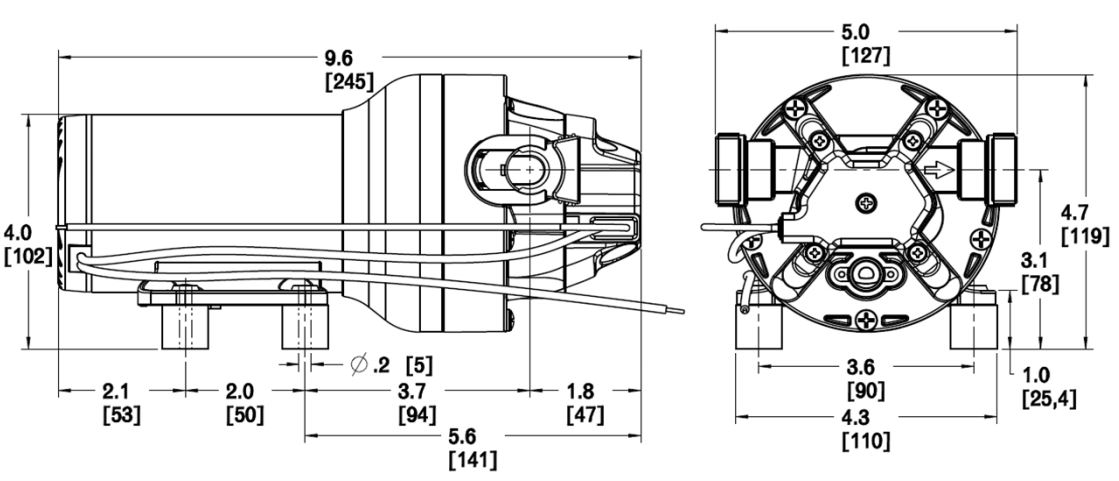

Dimensions
