Jabsco Par Max HD4 Water Pressure Pump - 24V 25PSI

Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of exceptional service in applications both large and small. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum end bells and lower housing to improve pressure capability and life

All Par Max Pump are now supplied with a Pump Guard Strainer

Feature

• 15 LPM (4 GPM)
• Co-molded diaphragm technology for long life and durability
• HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Runs Dry Without Damage
• Self‐Priming
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

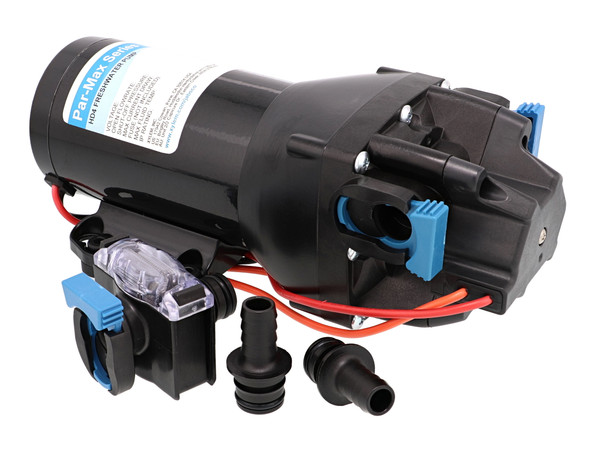

In the Box

Pump Unit: Jabsco PARMAX HD4 24V 4GPM (15 LPM) 25PSI Pump

Port Fittings: 2 x 1/2" (13mm) Straight Hose barb

Strainer: Inline Quick Connect Strainer 40 Mesh

Specifications

• Self-Priming: Up to 2.13 m ( 7ft)
• Flow output: 4GPM (15 LPM)
• Fitting straight hose barbs (Two): 1/2" (13 mm)
• Pressure switch cuts out at: 1.7 bar (25 psi)
• Max Inlet Pressure: 2.1 bar ( 30)PSI

• Nominal Voltage: 24 VDC

• Voltage Range: 18 VDC ‐ 27.2 VDC
• Max Current Draw: 4 Amps
• Fuse Size: 10 Amps - Not included
• Leads: 12" (305mm), 14 AWG (2.5mm^2)
• IP Rating: IPX6

Typical Installation

Dimensions
