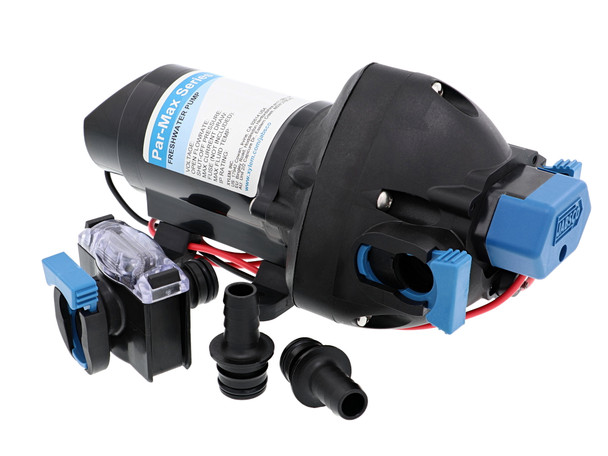

Jabsco Par Max 3 Pressure-Controlled Pump 25 PSI - 24 Volt

This all new 24 volt Jabsco Par Max 3 freshwater pump delivers 11 lpm with a pressure cut off of 25psi - Supplied including Jabsco inline pump guard strainer.

Features

• Double-diaphragm design self primes to 1.5 m vertical lift, can run dry without damage
• Delivering a substantial 35 PSI pressure
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications

• Self-Priming: Up to 6' (10.8 m)
• Flow output: 23GPM (11 LPM))
• Connection bore hose: 1/2" (13 mm)
• Pressure switch cuts out at: 25 psi (1.7bar)
• DC voltage: 24v
• Fuse size: 5 Amp
• Max current : 2.6 Amps

Typical Install
