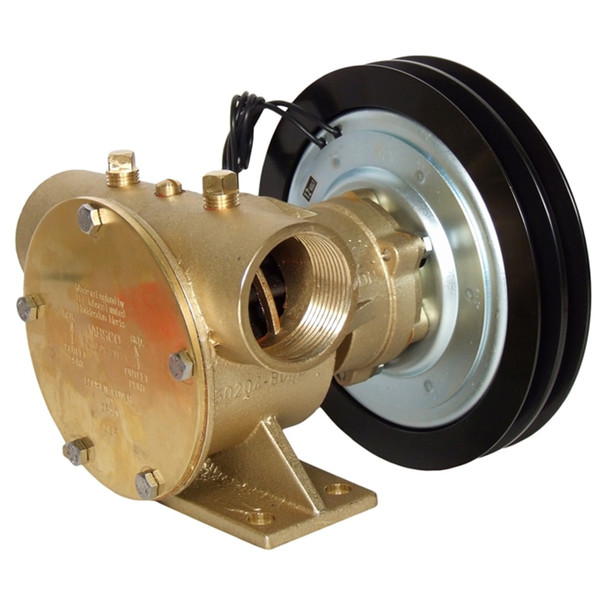

Jabsco 50200 Series 1 1/2'' Electric Magnetic Clutch Pump - Double Pulley - 24V (2.5A)

Jabsco 1.5" 38 mm bronze pump, 200 size, foot-mounted with BSP threaded ports available in 24 V DC and double pulley.

The Jabsco 1.5" Magnetic Clutch Pumps can output 195 litres per minute and is suitable as a heavy duty bilge and deck wash pump which runs off an engine with 1500 rpm.

Very heavy-duty bilge, deck wash and firefighting pump, belt driven from the engine, for leisure and commercial craft.

Features

• Neoprene impeller is fitted as standard
• Bilge debris presents no problems to this robust, bronze bodied flexible impeller pump
• Can be remotely controlled from outside the engine room, and can be automatically shut off by fitting a vacuum cut-off switch
• Heavy duty bilge and deck wash pump
• Bronze body, stainless steel shaft, mechanical shaft seal
• Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water
• Can pump in either direction
• Handles hard and soft solids without clogging
• Easy to service and maintain
• Will tolerate abrasive wear
• Constructed from marine quality bronze and stainless steel
• Can handle moderate amounts of suspended solid matter
• Will not airlock

Specifications

• Flow output: 48.75 GPM (195 LPM)
• Bearing type: Twin single row ball
• Total head: 10' (3 m)
• Nominal speed: @ 1500 rpm
• Self-Priming: Up to 15' (4.5 m) vertical lift
• Port type: BSP
• Port size: 1-1/2" (38 mm)
• Fuse size: 2.5 A
• Pulley E/M clutch: 2 A
• DC voltage: 24 V
• Mount type: Foot
• Height: 7" (17.8 cm)
• Wide: 6" (15.3 cm)
• Length: 9-1/2" (23.9 cm)
• Weight: 25 lb (11.2 kg)

Material of Construction

• Body material: Bronze head, cast Iron bearing
• Impeller material: Neoprene
• Shaft material: 316 Stainless steel
• Shaft seal material: Mechanical, carbon-ceramic

Spare Parts and Accessories

• Vacuum switch
• Impeller
• Impeller removal tool: 200/270/370/470/500 size pumps
• Service Kit
• Brass Reducing Bush 1.5" - 1.25" BSP
• 1 1/4" Hose Adapter
• 1 1/2" Hose Adapter

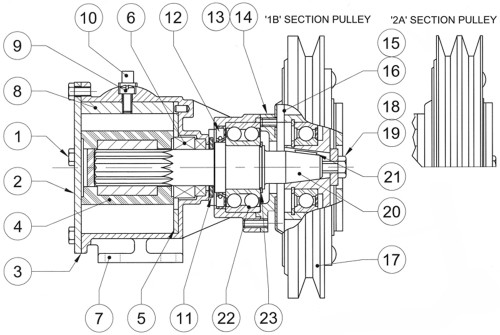

Dimension Drawing

Technical Files

Datasheet
Maintenance Instruction
