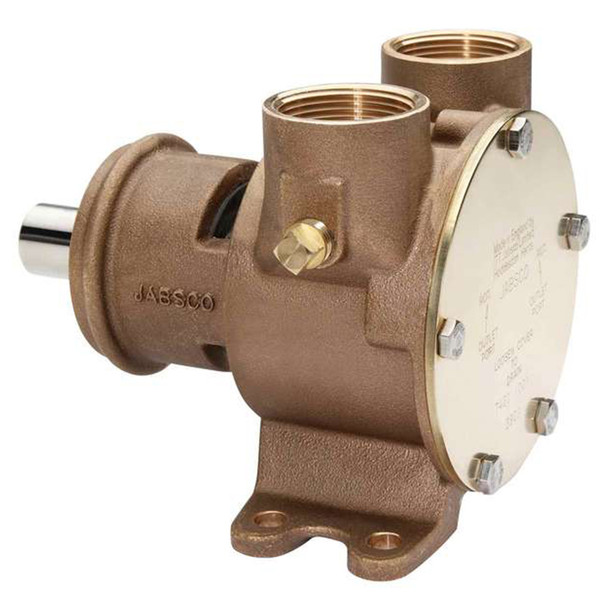

Jabsco Engine Cooling Pump - Size 200 (1-1/4") - Model 7420-0004

The self-priming flexible impeller pump is the industry recognized technology standard for leisure and work boat engine cooling. Being an original Jabsco, you are assured the highest grade bronze and stainless steels are used in keeping your engine at peak operating temperature. Flexible impeller pumps are ideally suited to washdown, circulation and fire duty applications onboard or dockside. Where needed, these pumps have easily replaced cams, end covers and wearplates for extended product life.

Features

• Double row ball bearing
• 7420-1001 has short shaft for Caterpillar engines

Specifications

• Bearing type: Pre-lubricated double row ball
• Pump size: 200
• Mount type: Foot
• Port type: NPT
• Port size: 1 1/4" (32 mm)
• Self-priming: Up to 10' (3 m)
• Output: 62 GPM (235 LPM)
• Length: 8 1/16" (20.5 cm)
• Width: 5 7/8" (14.9 cm)
• Height: 4 7/8" (12.4 cm)
• Weight: 10.5 lb (4.8 kg)

Materials of Construction

• Body material: Bronze
• Shaft material: 316 Stainless steel
• Shaft seal material: Mechanical face seal
• Impeller material: Neoprene

Jabsco Available Spares

Service Kits and Common Parts

• Service Kit - JSK375-0101
• Gasket/O-Ring - J816
• Impeller - J17935-0001
• Water Seal - J21849
• End Cover Screws - JSP1005-04
