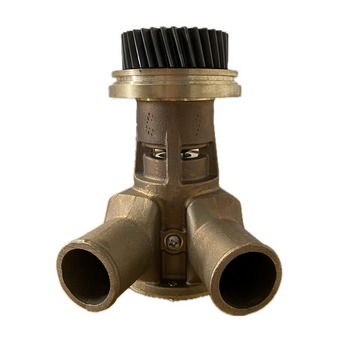

Jabsco Engine Cooling Pump -29630-1301A to suit Caterpillar 3054, 3054B, and 3056.

Jabsco engine cooling pump  29630-1301A designed as an aftermarket replacement for the Caterpillar 4255411, fitting Caterpillar engine models 3054, 3054B, and 3056.

Features

• Self priming engine cooling pump
• Full Cam

Specifications

• Pump size: 80
• Mount type: Flange
• Port size: 1 1/4" (32 mm)
• Weight: 3.7 kg

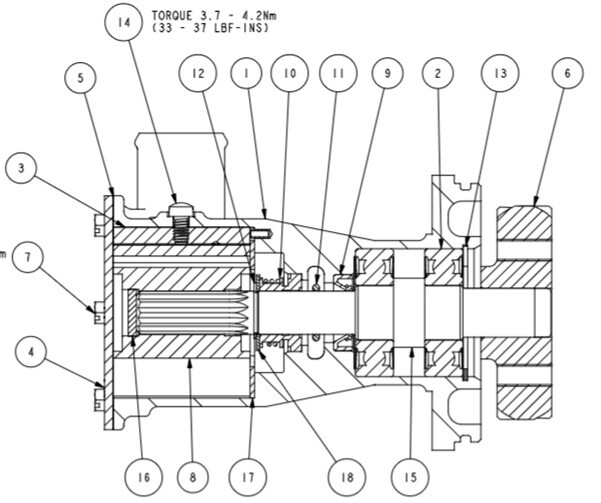

Service Kits and Common Parts

Key Description Part number

Service Kit SK385-0701 Contains keys 5, 7, 8, 10, 12, 16 *

• 2 Bearing SP2601-0468 x 2
• 3 Cam 934-0000
• 4 End Cover 11831-0000
• 5 Gasket 890-0000
• 7 End Cover Screws In service kit
• 8 Impeller 920-0001B
• 9 Lip Seal SP2700-1027B
• 10 Mech. Seal 96080-0626B
• 11 O-ring X4020-215A
• 12 Retaining Ring 91700-0620
• 13 Retaining Ring SP1701-438
• 14 Cam Screw 91004-0090 Kit of 3
• 15 Shaft 29637-0100B
• 16 Spline Seal 4345-0000 Also in impeller kit (8)
• 17 Wearplate 4156-0000
• 18 Washer 29706-0000

Spare Parts and Accessories

• Impeller removal tool: 040/080/120- size pumps
