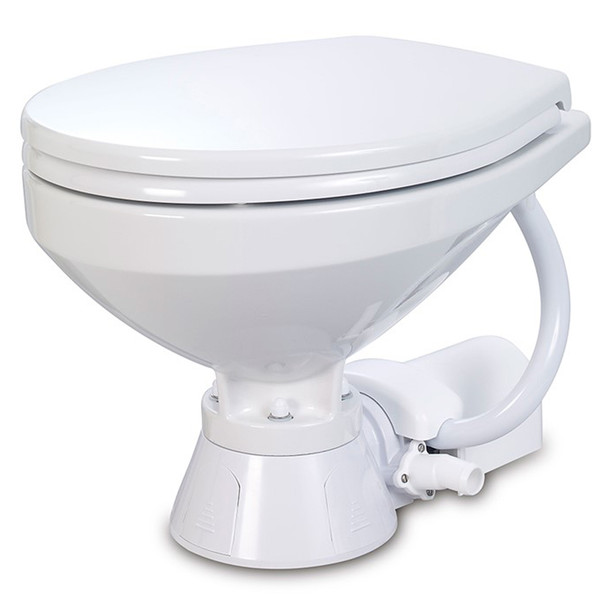

Jabsco Electric Toilet Regular 24V - Soft Close Seat - 37010-4194

Jabsco electric toilet with regular size bowl and featuring soft close seat and lid. This Toilet has push button operation for ease of use and the 24 volt motor is positioned at the rear back for a tidy appearance.

Jabsco toilets can be used on inland waterways, rivers, lakes or the sea, and can be installed above or below the waterline. All Jabsco toilets are designed to discharge overboard or into holding tanks as necessary.

Features

• Regular size bowl
• Soft close, Composite 'Duroplast' seat and cover
• Push Button Operation
• Flexible impeller flush pump
• Permanent magnet type motor, Fully enclosed, with stainless steel shaft
• High Capacity Macerator and Bowl Scavenger Pump
• Built-in Back Flow Preventer
• High capacity macerator and bowl scavenger pump
• Hygienic pure white vitreous china bowl for ease of cleaning
• Stainless steel and bronze fastenings for reliable salt water service
• Flushing pump self-priming up to 4' (1.2 m) vertical lift
• May be mounted 3' (1 m) below the waterline
• Equally suitable for overboard or holding tank discharge
• For installations fitted with vented loops, use a solenoid valve
• Complies with USCG 183.410 and ISO 8846 Marine ignition protection

Soft Close Seat

A total luxury to have on a rocking boat, stops the banging and crashing of falling lids

Specifications

• Connections:  19mm ( ¾”) bore inlet hose, 25mm (1“) bore discharge hose
• Fuse Size: 15 A
• Maximum Current: 8 amp
• DC Voltage: 24 V
• Dimensions: 365mm high, 375mm wide, 486mm deep
• Weight: 15.70kg
