Description
Attractive stainless steel buzzers featuring an attractive ring of LED light.
Manufactured from 304 stainless steel, these through panel mount buzzers are IP50 rated when installed and ideal for warning light or installing into custom switch panels.
The light rings may be wired to show power to a system or signal circuit activation.
The range also includes matching stainless steel switches with LED light rings.
Features
• 304 Stainless Steel
• 5 Pin (2.8 x 0.5mm) switches. 2 screws for buzzer.
• IP50
Specification
| Button Material | 304 Stainless Steel |
| Body Material | 304 Stainless Steel |
| Contact Material | Silver Alloy |
| Terminal Type | 5 Pin (2.8 x 0.5mm) switches. 2 screws for buzzer. |
| Panel Thickness | 1~ 10mm |
| Operating Temp | -20C~ +55C |
| Insulation Resistance | ≥ 1000MΩ |
| Contact Resistance | ≤ 50mΩ |
| Max. Switch Rating | 5A |
| Degree of Protection | IP 50 |
| Buzzer sound intensity | >80dB (1m) |

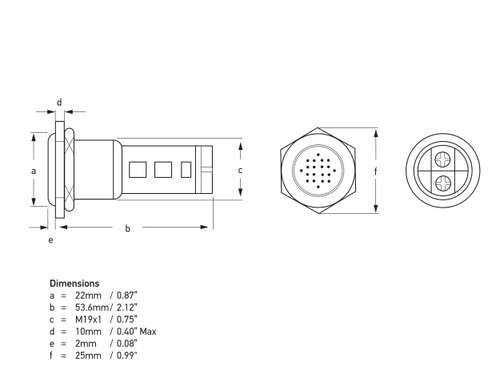

Dimensions
