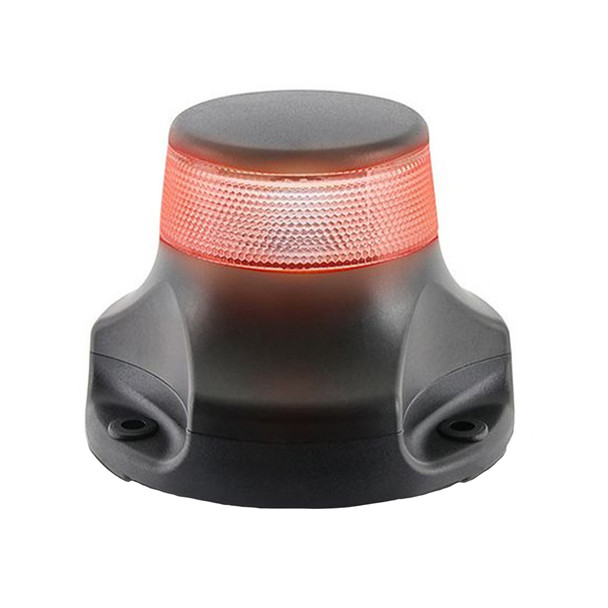

Hella NaviLED 360 Pro Navigation Red Light

The ultra-reliable NaviLED 360 series has been updated to a new lower profile design with enhanced efficiency
Maintaining the same mounting footprint and reliability of the original design, the new version also incorporates Grilamid® lens material for extreme durability. The NaviLED 360 PRO also now features Wheelmark certification across the complete range.

Certified to 2NM visibility and suitable for vessels up to 50m, the White, Red and Green LED options make this series ideal for commercial vessels involved in fishing, trawling, towing, diving, pilotage duties or NUC. Black and white housings also allow the lamps to integrate with the style and colour of the vessel.

Features

• Modern lower profile design
• Wheelmark approval across the range
• Same mounting footprint
• Internationally approved
• Ultra low power consumption
• UV, corrosion & impact resistant
• Completely sealed IP67
• Multivolt 12/24V DC
• 2 Nautical Mile visibility

Specifications

Material Description	Grilamid® lens, UV, corrosion & impact resistant housing
Minimum Visible Distance	2 Nautical Miles (Yachts and Powerboats)
Cable	Pre-wired with 1.4m of twin core marine cable
Operating Voltage	Multivolt™ 12-24V DC
Voltage Protection	Spike protected to +500 volts. Reverse polarity protected to -500 volts
Power Consumption	< 1.5W
Degree of Protection	IP 67 - Completely Sealed
Weight	150g (including cable)
Approvals	IMO Col Reg 72, Wheelmark, USCG, ABYC A-16, RCD, Maritime NZ, CE, UKCA, Red Ensign

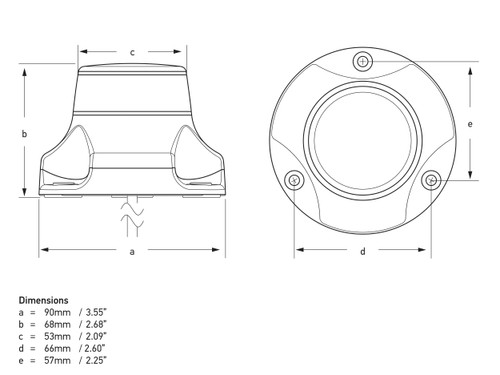

Dimensions

This product is designed for operation on 12-24V systems.

Technical Files

Instruction sheet

Declaration of Conformity
