Description
Hella marine LED step lamps are proven the worldwide. 9680 series lamps feature engineered optics to direct light downwards at 30 degrees safely illuminating deck and step tread surfaces without shining into the eyes.
Features
- UV and enhanced impact resistant Grilamid
- Multivolt for optimum brightness in 12 and 24 volt systems
- IP67 - Completely Sealed
- Pre-wired with 120mm of marine cable
- 5 year warranty.
Specification
| Lens Material | UV and impact resistant plastic |
| Rim Material | 316 stainless steel |
| Cable | Pre-wired with 120mm of marine cable |
| Operating Voltage | 10-33V DC |
| Power Consumption | 0.5W ( < 0.04A@12V / < 0.02A@24V ) |
| Degree of Protection | IP 67 - Completely Sealed |
| Mounting | Stainless steel screws included |
| Weight | 35g (including cable) |
| Approvals | CE |

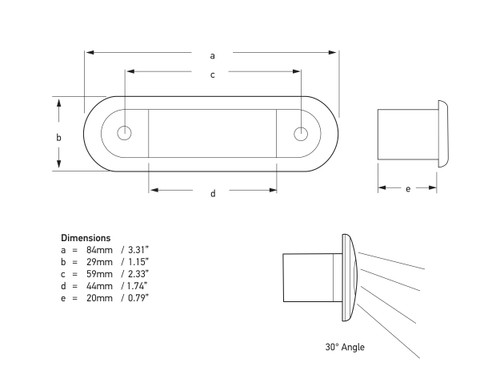

Dimensions
This product is designed for operation on 12-24V systems.
