Hella Latching Stainless Steel LED Switch - Blue

Hella attractive stainless steel switches featuring an attractive ring of LED light.
Ideal for a wide range of interior or exterior applications such as controlling and dimming lighting or operating accessories. These through panel mount switches are IP67 rated when installed and ideal for switching lighting or installing into custom switch panels and manufactured from 304 stainless steel.

Proven across the world’s most unforgiving oceans on board the last generation of Volvo Ocean Race yachts, Hella marine LED switches were installed into steering pedestals and endured maximum exposure to the elements.

The light rings may be wired to show power to a system or signal circuit activation.
The range also includes matching stainless steel warning buzzers with LED light rings.

Features

• 304 Stainless Steel
• 5 Pin (2.8 x 0.5mm) switches. 2 screws for buzzer.
• IP67

Specification

Button Material	304 Stainless Steel
Body Material	304 Stainless Steel
Contact Material	Silver Alloy
Terminal Type	5 Pin (2.8 x 0.5mm) switches. 2 screws for buzzer.
Panel Thickness	1~ 10mm
Operating Temp	-20C~ +55C
Insulation Resistance	≥ 1000MΩ
Contact Resistance	≤ 50mΩ
Max. Switch Rating	5A
Degree of Protection	IP 67

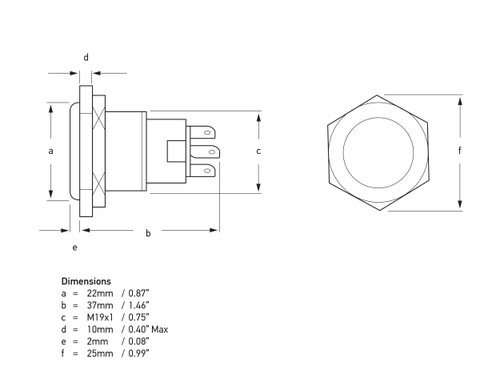

Dimensions
