Hella Apelo A2 Bronze LED Underwater Light - RGB

Hella high quality Apelo A2 Bronze LED underwater lights incorporate Optical Intelligence and advanced materials for superior lighting brilliance, Apelo A2 delivers up to 3000 lumen of impressive white/blue light for amazing illumination experiences under your vessel.

Features

• Marine grade bronze housing
• Multivoltage 12 -24V LED
• Light colour Multi
• Optical Intelligence focuses light patterns efficiently below the waterline
• A narrow vertical but wide horizontal angle means higher brightness when viewing from above
• Engineered to suppress potential interference with radios, chart plotters and other devices onboard
• High-strength, UV-resistant Grilamid lens delivers exceptional transparency and durability
• Complies with International Standards to deliver an impressive level of robustness, fit and finish
• Surface mount design, corrosion resistant and compatible with a variety of hull materials
• Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages
• 5 year warranty

Specifications

Lens Material	Premium grade UV Stable, Impact resistant Nylon (Grilamid)
Base Material	Marine grade bronze
Cable	2.5m / 8.2ft of 5 core tinned marine cable
Operating Voltage	Multivolt 9-32V DC, 12/24V DC Nominal
Voltage Protection	Spike protected to +500 volts, Reverse polarity protected to -700 volts
Power Consumption	RGB 30W / 2.5A @ 12V DC, 1.3A @ 24V DC Edge Light <2W / <0.2A @ 12V DC, <0.1A @ 24V DC
Degree of Protection	IP68 / IP69: Suitable for submersion in operation and high pressure water jet cleaning
Weight	650g (including cable)
Installation	Transom / Surface mount with robust mounting system
Approvals	EN55015 / CISPR 15, IEC60533, IEC61547, ICES-5

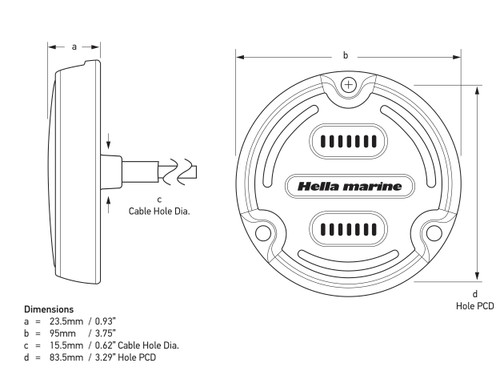

Dimensions



Multivolt  9-32 DC

This product is designed for operation on 12V and 24V systems.
