Halyard Marine Exhaust Water Separator MS4020 38mm 90° Bend

Manufactured from a special high temperature Polyolefin, the Halyard Exhaust Water Separator, Model MS4020 has 38mm ( 1.5") inleat and outlets. Used to improve exhaust noise attenuation and to reduce exhaust outlet splashing, exhaust gas separators split cooled exhaust gases from the cooling water. Exhaust gases leave the vessel in the traditional manner whilst cooling water is directed to an underwater drain.

Features

• Material: Special high temperature Polyolefin
• Can achieve up to 80% noise attenuation

Specification

• Exhaust: 38mm
• Maximum Water Flow: 18L/mim

Dimensions

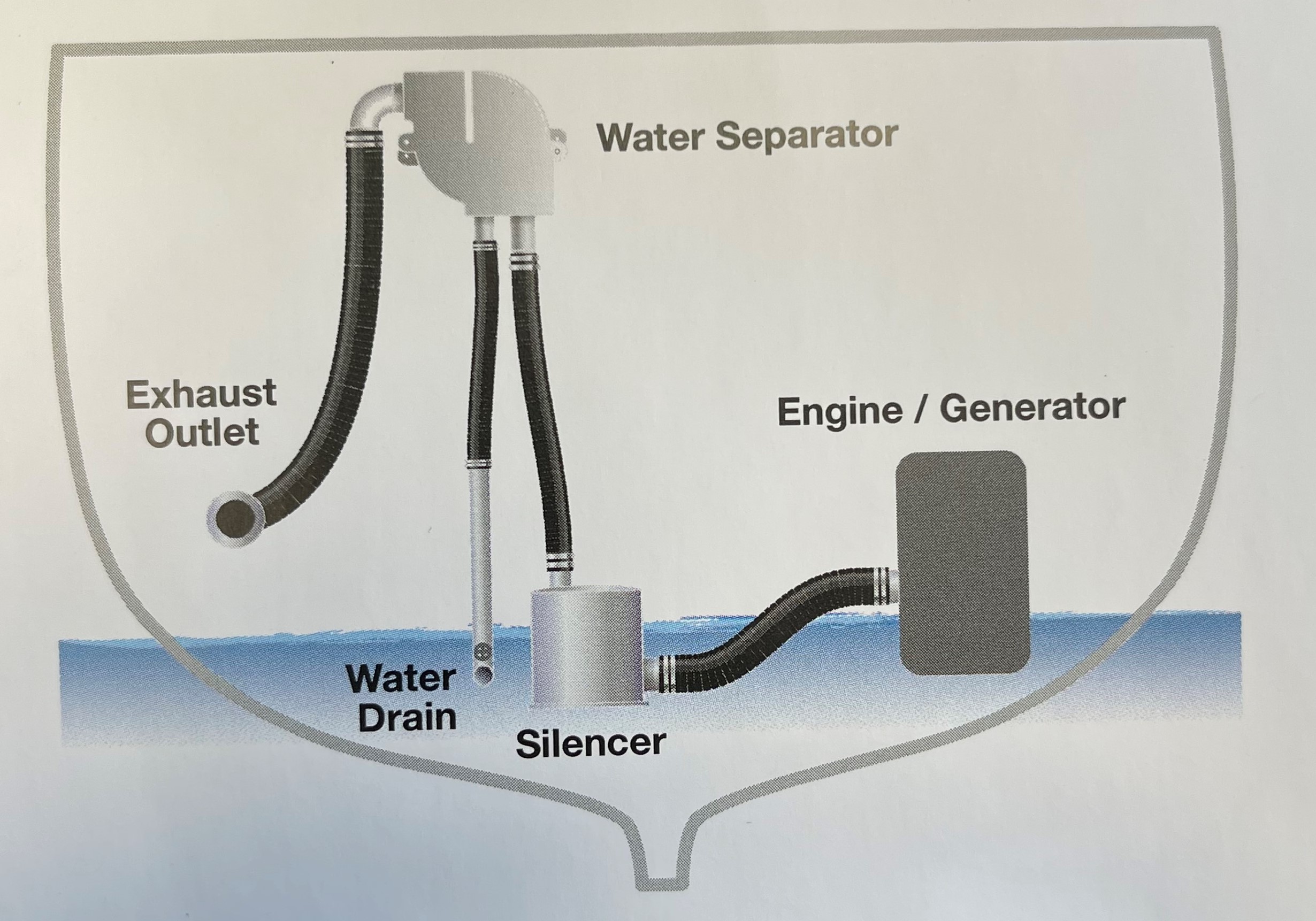

Typical Installation
