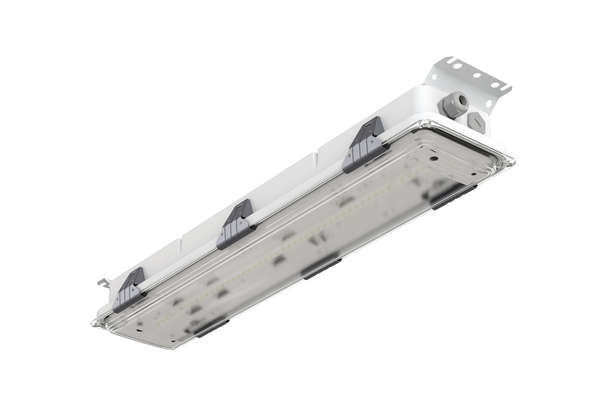

Glamox MIRS67-600 (M) G2 2500 HF 840 TW M20 FR/PC LED Light Fitting

The MIRS67-600 (M) G2 2500 HF 840 TW M20 FR/PC is a high-performance lighting fixture crafted for industrial, commercial, and outdoor applications demanding reliability and adaptability. Delivering a powerful 2500 lumens, it provides clear, efficient illumination ideal for spaces where visibility and safety are priorities. The Tunable White (TW) feature allows users to adjust the color temperature, starting at a neutral 4000K, to match specific needs or environments, enhancing comfort and productivity. This fixture includes a high-frequency (HF) ballast for flicker-free operation, improving energy efficiency and reducing eye strain.

Built for durability, the M20 cable gland ensures a secure installation, while the frosted polycarbonate (FR/PC) lens delivers evenly diffused, glare-free light, making it ideal for workplaces and high-traffic areas. This robust design is resistant to impact and environmental wear, ensuring longevity even in challenging conditions. Compact at 600mm, it integrates easily into various spaces without dominating the aesthetic, offering both performance and a streamlined look. The MIRS67-600 (M) G2 2500 HF 840 TW M20 FR/PC is a sustainable choice for any setting needing reliable, adaptable lighting that balances high performance with energy-conscious operation.

Light Technical Data

• Light source: LED
• Lumen out (lm): 2678
• Number of lamps: 1
• Lumen per Watt (lm/W): 149
• Lamp colour temp (K): 4000
• CRI Colour rendering index: >80
• Light distribution up %: 2
• Light distribution down %: 98
• MacAdam step: 3
• Energy class light source: C
• Light source included: Yes

Technical Data

• Minimum ambient temperature (ºC): -40
• Maximum ambient temperature (°C): 50
• IK classification: 10
• IP classification: 66/67
• Corrosion class: C5-M

Electrical Data

• EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck
• Leakage current (mA): 0.30
• Minimum Voltage -10% (VAC): 220
• Maximum voltage +10% (VAC): 240
• Minimum frequency -5% (Hz): 50
• Maximum frequency +5% (Hz): 60
• Main Feed DC (V) Min: 180
• Main Feed DC (V) Max: 270
• Total consumption (W): 18
• Number of luminaires on a 10A MCB type B: 6
• Number of luminaires on a 10A MCB type C: 10
• Number of luminaires on a 16A MCB type B: 10
• Number of luminaires on a 16A MCB type C: 17

Housing

• Main body material: Stainless Steel 316L
• Body colour: WH - White
• Main body colour name: White

Optic

• Optic: FR/PC - Frosted diffuser in polycarbonate
• Material of diffuser: Polycarbonate

Termination

• Termination: 5X6.0mm2 Screw Terminal
• Type of through wiring: 5x2.5

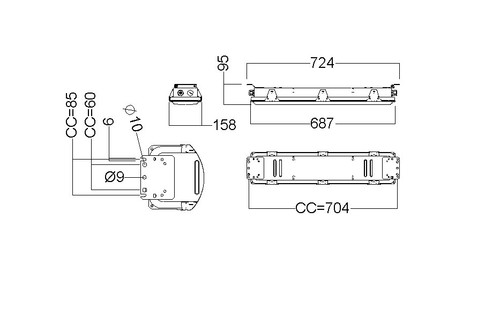

Dimensions

• Length (mm): 724
• Width (mm): 158
• Height (mm): 95
• CC Min: 704
• CC max: 704
• Net weight (kg): 3.77

Cable Inlet

• Cable gland: M20-Polyamide
• Number of cable glands: 2
• Blind plugs: M20-Polyamide
• Number of blind plugs: 2
• Max cable diameter (mm): 14
• Min cable diameter (mm): 7

Driver / Ballast

• Type of LED Driver: HF-Non dimmable
• Number of Driver: 1

Mounting

• Product mounting: Ceiling surface

Lifetime

• L80 Median useful life LED Ta45 (hr): 100000

Certificates

• Marine Approved: Yes
• EX zone: No Ex

General

• EPD (Environmental Product Declaration): Yes

Downloads

Product Sheet

User Manual

Certificate
