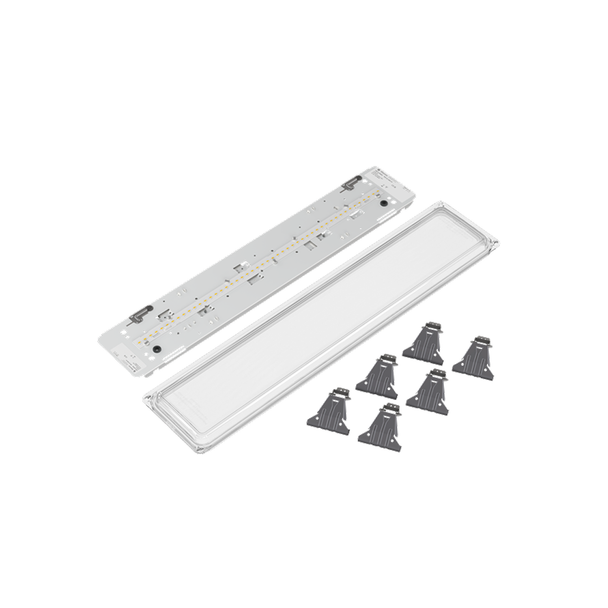

Glamox MIR KIT-600 (M) G2 2500 HF 840 FR/PC IP66/67 LED Light Replacement Kit

The Glamox MIR KIT-600 (M) G2 2500 HF 840 FR/PC IP66/67 LED Light Replacement Kit is a compact, durable, and energy-efficient lighting solution designed for industrial and commercial applications. Delivering 2500 lumens with a neutral white 4000K color temperature, this Generation 2 model provides bright, clear illumination suited for both detailed tasks and general lighting requirements.

Its high-frequency (HF) ballast ensures flicker-free lighting, which reduces eye strain and promotes visual comfort in extended-use environments. Built to withstand harsh conditions, this kit carries an IP66/67 rating, offering excellent protection against dust and water, making it ideal for both indoor and outdoor installations. The frosted polycarbonate (FR/PC) lens diffuses light evenly, minimizing glare and ensuring comfortable illumination across spaces. At 600mm, this LED replacement kit is a compact yet powerful solution that upgrades existing fixtures with dependable, long-lasting performance in challenging environments.

Light Technical Data

• Light source: LED
• Lumen out (lm): 2678
• Number of lamps: 1
• Lumen per Watt (lm/W): 149
• Lamp colour temp (K): 4000
• CRI Colour rendering index: >80
• Light distribution up %: 2
• Light distribution down %: 98
• MacAdam step: 3
• Energy class light source: C
• Light source included: Yes

Technical Data

• Minimum ambient temperature (ºC): -40
• Maximum ambient temperature (°C): 50
• IP classification: 66/67

Electrical Data

• EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck
• Leakage current (mA): 0.30
• Minimum Voltage -10% (VAC): 220
• Maximum voltage +10% (VAC): 240
• Minimum frequency -5% (Hz): 50
• Maximum frequency +5% (Hz): 60
• Main Feed DC (V) Min: 180
• Main Feed DC (V) Max: 270
• Total consumption (W): 18
• Number of luminaires on a 10A MCB type B: 6
• Number of luminaires on a 10A MCB type C: 10
• Number of luminaires on a 16A MCB type B: 10
• Number of luminaires on a 16A MCB type C: 17

Housing

• Body colour: WH - White
• Main body colour name: White

Optic

• Optic: FR/PC - Frosted diffuser in polycarbonate
• Material of diffuser: Polycarbonate

Dimensions

• Length (mm): 645
• Net weight (kg): 2.08

Driver / Ballast

• Type of LED Driver: HF-Non dimmable
• Number of Driver: 1

Lifetime

• L80 Median useful life LED Ta45 (hr): 100000

Certificates

• Marine Approved: Yes
• EX zone: No Ex

Texts

• Remarks: Contains complete gear tray, diffuser and diffuser clips
