Glamox MIR KIT-1200 (M) G2 5000 HF 840 FR/PC IP66/67 LED Light Replacement Kit

The Glamox MIR KIT-1200 (M) G2 5000 HF 840 FR/PC IP66/67 LED Light Replacement Kit is a high-performance LED replacement solution, crafted for industrial and commercial environments requiring durability and efficiency. This Generation 2 model offers an output of 5000 lumens and a neutral 4000K color temperature, delivering bright and balanced illumination ideal for task-focused and general applications. Equipped with a high-frequency (HF) ballast, it ensures flicker-free lighting, enhancing visual comfort and productivity in demanding settings.

Built to withstand harsh conditions, the kit has an IP66/67 rating, providing protection against dust and water ingress, making it suitable for both indoor and outdoor installations. The frosted polycarbonate (FR/PC) lens diffuses light evenly, minimizing glare and creating a comfortable lighting environment. At 1200mm, this LED replacement kit is designed to upgrade existing fixtures with a robust, energy-efficient solution that ensures reliable performance in challenging industrial and commercial spaces.

Light Technical Data

• Light source: LED
• Lumen out (lm): 5168
• Number of lamps: 1
• Lumen per Watt (lm/W): 153
• Lamp colour temp (K): 4000
• CRI Colour rendering index: >80
• Light distribution up %: 2
• Light distribution down %: 98
• MacAdam step: 3
• Energy class light source: C
• Light source included: Yes

Technical Data

• Minimum ambient temperature (ºC): -40
• Maximum ambient temperature (°C): 50
• IK classification: 10
• IP classification: 66/67

Electrical Data

• EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck
• Leakage current (mA): 0.30
• Minimum Voltage -10% (VAC): 220
• Maximum voltage +10% (VAC): 240
• Minimum frequency -5% (Hz): 50
• Maximum frequency +5% (Hz): 60
• Main Feed DC (V) Min: 180
• Main Feed DC (V) Max: 270
• Total consumption (W): 34
• Inrush current (A): 41.60
• Number of luminaires on a 10A MCB type B: 6
• Number of luminaires on a 10A MCB type C: 10
• Number of luminaires on a 16A MCB type B: 10
• Number of luminaires on a 16A MCB type C: 17

Housing

• Body colour: WH - White
• Main body colour name: White

Optic

• Optic: FR/PC - Frosted diffuser in polycarbonate
• Material of diffuser: Polycarbonate

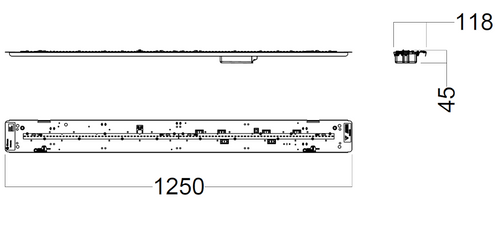

Dimensions

• Length (mm): 1250
• Net weight (kg): 3.40

Driver / Ballast

• Type of LED Driver: HF-Non dimmable
• Number of Driver: 1

Lifetime

• L80 Median useful life LED Ta45 (hr): 100000

Certificates

• Certification: ENEC
• Marine Approved: Yes
• EX zone: No Ex

General

• Product shape: Linear

Texts

• Remarks: Contains complete gear tray, diffuser and diffuser clips
