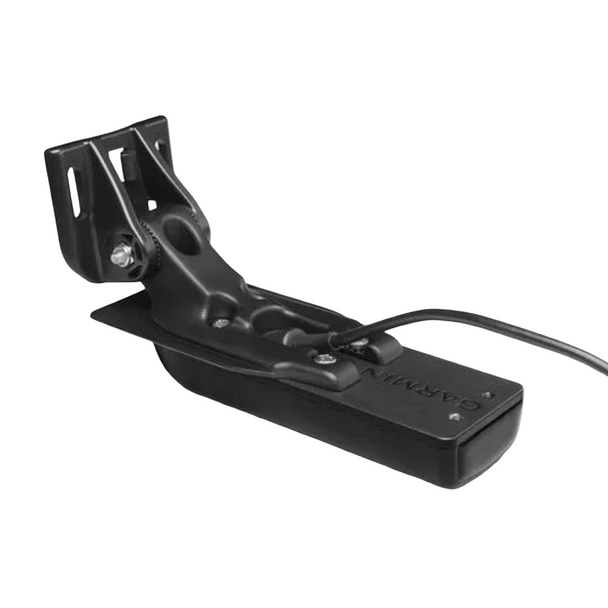

Garmin GT54UHD-TM Trad/ClearVu & SideVu 800KHZ

All-in-one transducer

• One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
• High wide CHIRP traditional sonar provides remarkably clear target separation and definition
• See incredibly detailed images of fish and structure up to 60 m (200 ft) below your boat with 800 kHz ClearVü sonar
• Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 150 m (500 ft)
• Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts

Ultra-high clarity

The GT54 ultra high-definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar — all in one transducer.

Ultra-high performance

Ultra high-definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 60 m (200 ft) below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 150 m (500 ft). It's easy to install with included transom and trolling motor mounts so you can start fishing faster.

Specifications

• FREQUENCY CHIRP High Wide (150-240 kHz); UHD ClearVü CHIRP 800 kHz (760-880 kHz); UHD SideVü 1,200kHz (1020-1230 kHz); CHIRP SideVü 455 kHz (425-485 kHz)
• POWERCHIRP Traditional 350 W; ClearVü/SideVü 350 W
• BEAMWIDTHCHIRP: 24°-16° ClearVü: 0.94°x60° @ 800 kHz SideVü: 1.62°x50° UHD
  SideVü: 0.441°x52° @ 1200 kHz
• MAXIMUM DEPTH CHIRP: 800 ft.; ClearVü 200 ft.; SideVü 500'; UHD SideVü 125'
• DEPTH/SPEED/TEMPERATURE Depth and Temperature
• NUMBER OF PINS 12
• CABLE LENGTH 20 ft.
• SUPPORTED DEADRISE/TRANSOM ANGLES0°-70° degree transom

IN THE BOX:

• GT54UHD-TM transducer
• Transom mount
• Trolling motor mount
• Mounting hardware
• Documentation
