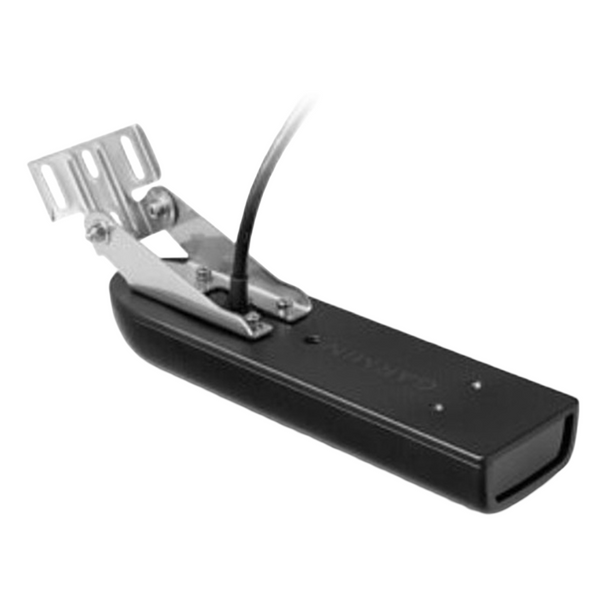

Garmin GT41-TM Transom Transducer - 12 Pin 010-12221-00

This transom mount transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional and Chirp DownVü/SideVü transducer is optimized for depth performance and rough conditions.

The Chirp DownVu/SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional sonar has a power rating of 600 W and operating frequencies of 50/200 kHz. It also includes a built-in fast response temperature sensor.

The Garmin GT41-TM includes a 12-pin transducer with mounting hardware and installation instructions.

Frequency

• Traditional: 50/200 kHz
  • DownVu: Chirp 245-275 kHz and Chirp445-465 kHz
  • SideVu: Chirp 245-275 kHz and Chirp 445-465 kHz

Transmit power

• Traditional: 600 W
  • DownVu: 500 W
  • SideVu: 500 W

Max Depth

• Traditional: 1,500 ft

  • DownVu: 1,000 ft

  • SideVu: 750 ft

Beam Width (°) LF/HF (-3dB):

• Traditional: 40/10
• DownVü:
  • 2.0x51@260

  • 1.4x29@455
• SideVü:
  • 2.0x51@260

  • 1.4x29@455
• Read water temperature: Yes

Dimensions

• Transducer: 9.0 x 2.5 x 1.2 in (228 x 62 x 30 mm)
• Weight: 2.48 lbs. (1.12 kg)
• Cable length: 30’
• Number of pins on connector: 12

Compatibility:

Garmin 73sv, Garmin 74sv, Garmin 93sv, Garmin 94sv, Garmin 72sv, Garmin 73sv, Garmin 74sv Garmin 75sv, Garmin 92sv, Garmin 93sv, Garmin 94sv, Garmin 95sv, Garmin 7407xsv, Garmin 7408xsv, Garmin 7410xsv, Garmin 7412xsv, Garmin 7607xsv, Garmin 7608xsv, Garmin 7610xsv, Garmin 7612xsv, Garmin 7616xsv, Garmin GSD 25 Premium Sonar Module, Garmin Striker 7sv
