Description

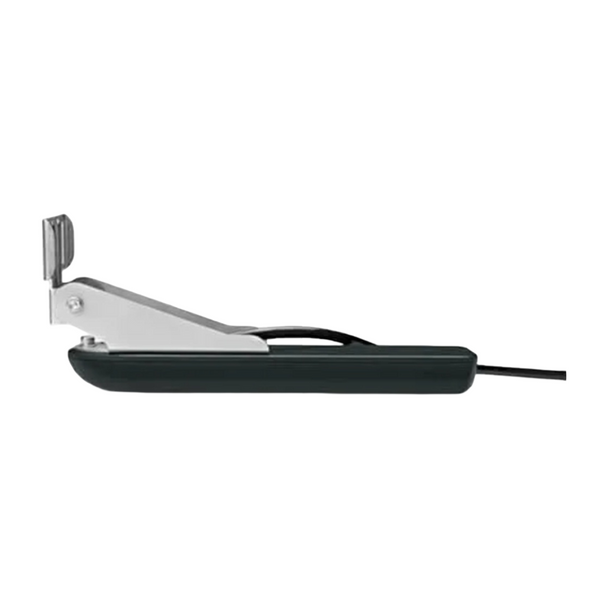

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mount transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.
The 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of 455/800 kHz; and a 0 to 70 transom angle. Pair it with your GCV™ 10 black box sonar.
Transducer comes with installation instructions. Follow the instructions carefully to avoid damaging your boat
Features
- DownVu/ClearVu compatible
- 20ft Cable Length
- 12 Pin
- Transom Mounted for ease of installation
- 500 W (455/800 kHz) Dual Beam
Specifications
| TRANSDUCER FREQUENCY | ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
|---|---|
| TRANSDUCER POWER | ClearVü/SideVü 500 W |
| TRANSDUCER BEAMWIDTH | ClearVü: 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz SideVü: 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz |
| TRANSDUCER MAXIMUM DEPTH | ClearVü: 750 ft.; SideVü: 500 ft. |
| TRANSDUCER CABLE LENGTH | 20 ft. |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| TRANSDUCER NUMBER OF PINS | 12-pin |
| TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES | 0°-70° degree transom |
