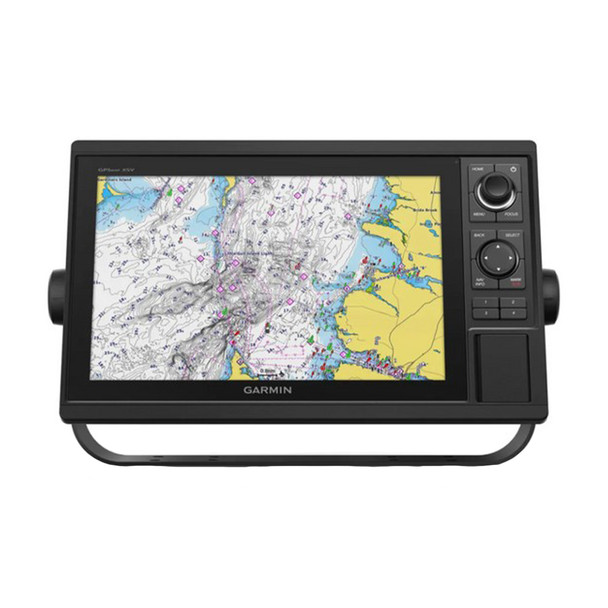

Garmin GPSMAP 1222xsv

The Garmin 1222XSV GPSmap comes with a diagonal 10" colour screen that can be mounted on a dash or flush. The Garmin 1222 includes alll the standard Garmin GPS features such as high waterproofing (IP67), World Basemaps (Marine Charts sold separately) and high sensitivity internal GPS antenna. Accepts Transducer (12 Pin) however the box does contain a 12 to 8 pin adapter suitable for Garmin Transducers. 2 extra SD card slot included for extra storage and maps.

Also includes Garmin Sonar, SideVu and Auto Guidance capability.

- 12-inch color SVGA display with keyed control
- High-sensitivity internal 10 Hz GPS/GLONASS receiver
- Preloaded with worldwide basemap; compatible with LakeVu HD Ultra, BlueChart g2 and BlueChart g2 Vision
- Supports all Garmin marine radar
- Replaces the Garmin 1020 GPS

Dimensions 318 x 185 x 69cm
Weight 1.85kg
Water rating IPX7
Display type WSVGA display
Typical current draw at 12v with 1.9 A
Receiver: 10 Hz high-sensitivity
Garmin Marine Network ports 2
SideVü Yes with CHIRP (built-in)
Maximum depth 1500m at 1kW
Transducer pin numbers: 12
NMEA 0183 input ports 1
NMEA 0183 output ports 1
Video input ports 1BNC

Contents:

- Garmin GPSMAP 1222xsv with worldwide basemap
- Power/data cable
- Bail mount
- Flush mount
- Protective cover
- Documentation
