Description
Robust magnetron scanning in a compact Garmin dome radar, Loaded with advanced features typically found on open arrays, these powerful 18″ and 24″ dome radars offer superior traffic, obstacle and weather detection for peace of mind on the water.
Key Features
- 4kW Power output, 48-Nautical mile max range
- Scan averaging technology
- Improved Target Size Processing
- Split screen Dual range Display
- Bird Detection
- Quiet dome drive motor
In the Box
- GMR 18 dome radar
- Power cable (15 m/49.21 ft)
- Network cable (15 m/49.21 ft)
- Mounting hardware kit and template
- Installation instructions
Specifications
General |
|
| DIMENSION | 18: 20″ x 9.8″ (508 mm x 248 mm) |
|---|---|
| WEIGHT | 18: 7.0 kg |
| WATER RATING | IPX7 |
| ANTENNA LENGTH | 18: 17″ (43 cm) |
| ROTATION SPEED (RPM) | Up to 60 rpm, depending on settings |
| BEAM WIDTH | 18: 5.2° horizontal, 25° vertical |
| MAXIMUM RANGE | 48 nm |
| MINIMUM RANGE | 20 metres |
| RADAR TYPE | Radome |
Electrical features |
|
| POWER INPUT | 11 - 32 V DC |
|---|---|
| POWER CONSUMPTION (STANDBY) | 15 W |
| TYPICAL POWER CONSUMPTION, TRANSMITTING (NORMAL MODE) | 40 W |
| TRANSMIT POWER | 4 kW |
Radar features |
|
| DUAL RANGE | Yes |
|---|---|
| OVERLAY | Yes |
| DUAL RADAR SUPPORT | Yes |
| AUTO BIRD GAIN | Yes |
| AUTO GAIN | Dynamic |
| MARPA TARGET TRACKING | Yes (requires heading sensor, sold separately) |
| ECHO TRAILS | True |
| TARGET SIZE | Yes |
| SCAN AVERAGING | |

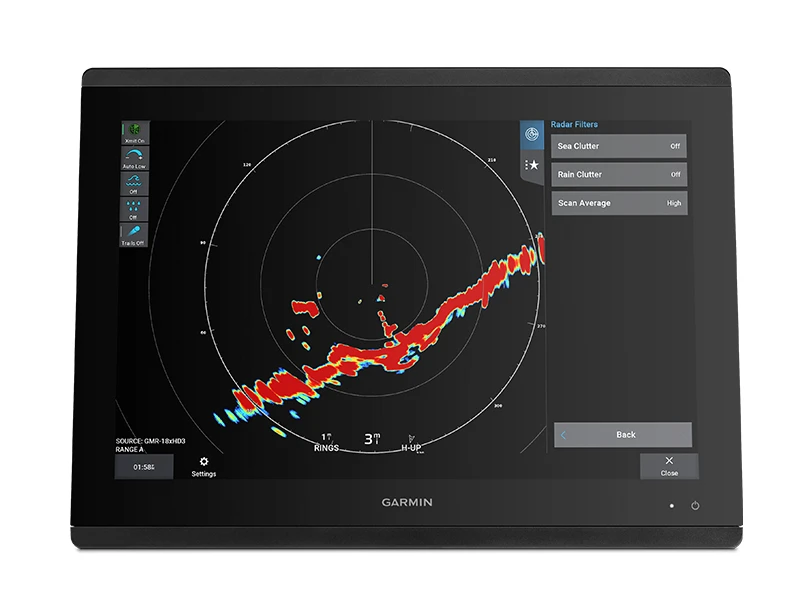

NEW SCAN AVERAGING TECHNOLOGY
A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.

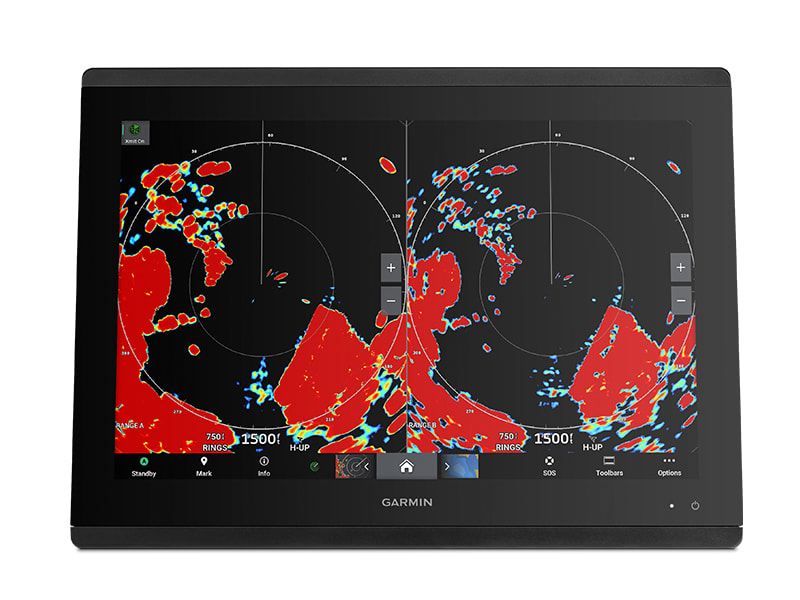

ANGULAR TARGET-SIZE ADJUSTMENT
Pulse expansion and angular target-size processing techniques optimise on-screen object shapes for better interpretation at all range scales.

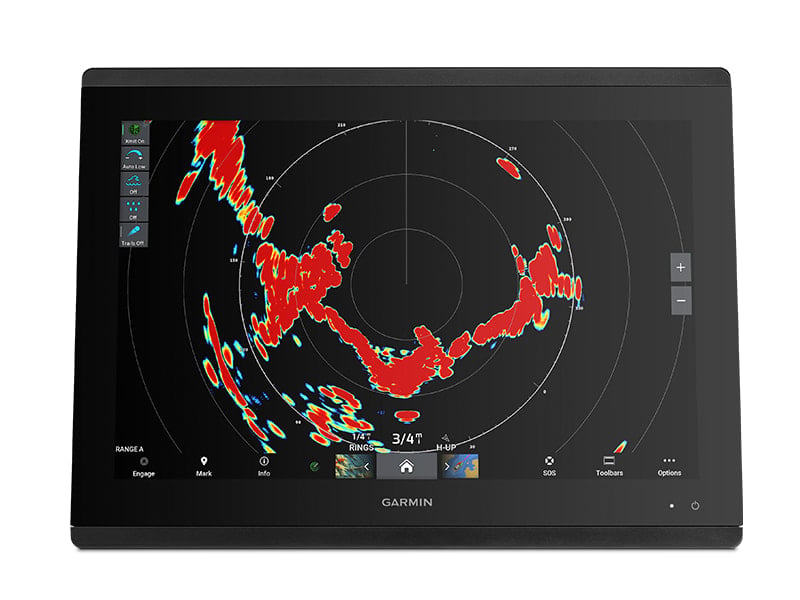

FASTER SCANNING ANTENNA
Rotation speeds up to 60 rpm improve the redraw rate for faster target updates.

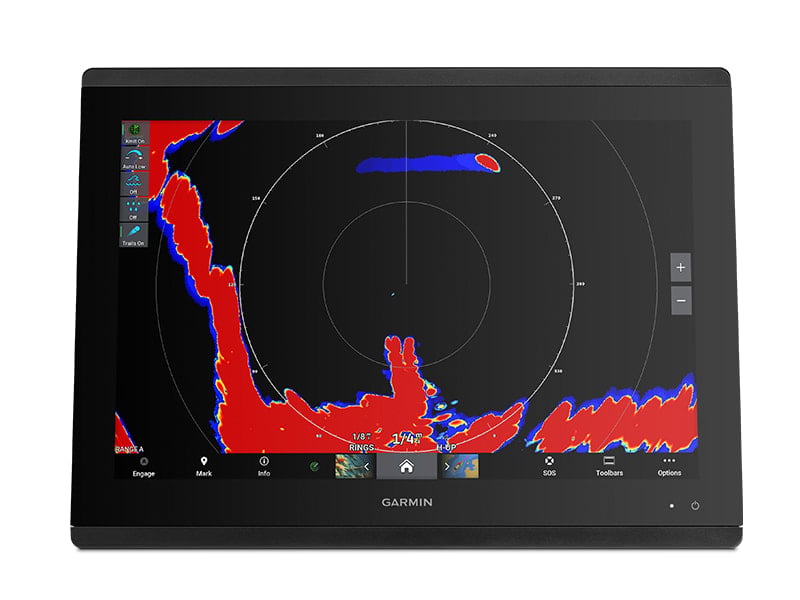

TRUE ECHO TRAILS
A historical "trail" of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats.

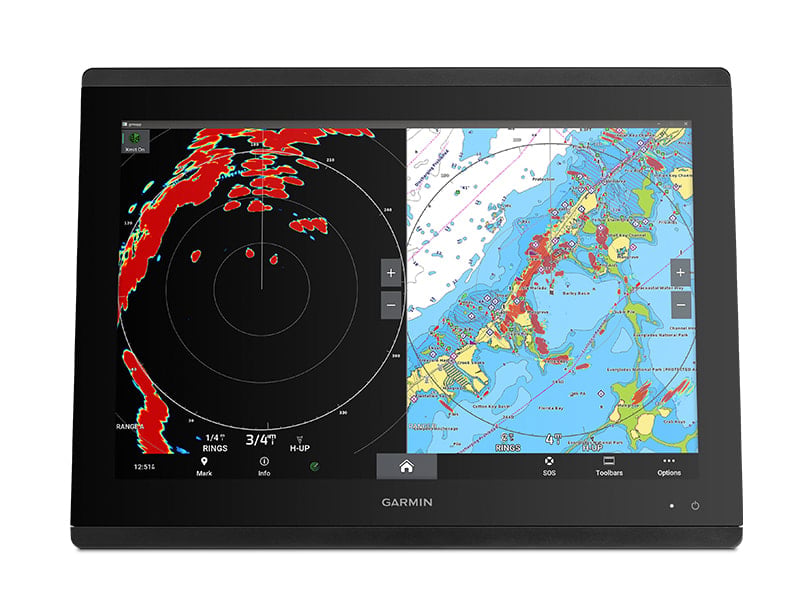

DUAL RANGE WITH OVERLAY
A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.

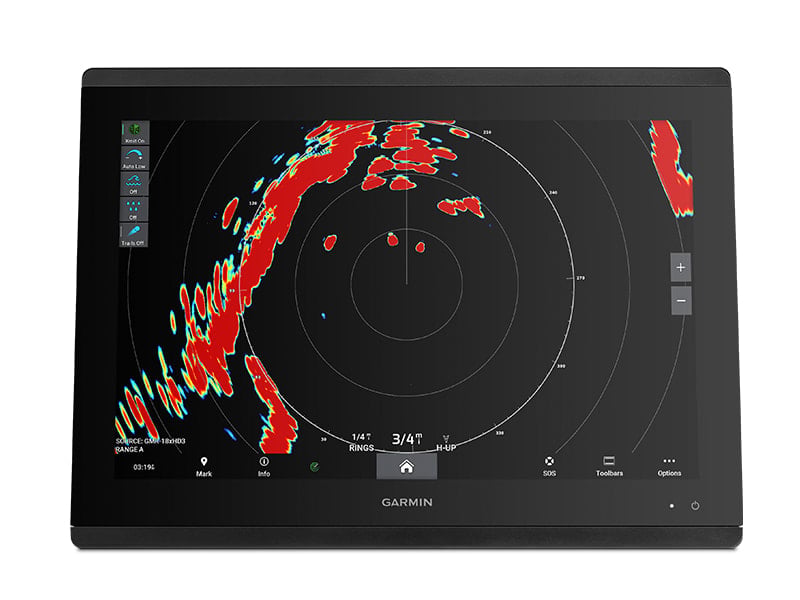

DYNAMIC AUTO GAIN
Gain automatically adjusts levels to optimum settings for harbours, near shore and offshore in open waters.
