Description
The Garmin Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited. Suitable for Fresh and Salt water
Key Features
- Industry's most powerful trolling motor; 100LBS of Thrust1
- Wireless Integration with Garmin Chartplotters
- Suitable for Fresh and Salt Water
- Stay on the fish with anchor lock and multi-band GPS
- Pivot-style mount for easy installation
- Available in 63'',75'' & 90'' shaft lengths
- Seamless cable integration with Livescope Sonar
In the Box
- Force Kraken Trolling motor
- GT56UHD-TR transducer
- Remote
- High efficiency propeller
- Assembly and mounting hardware
- Documentation
HIGH POWERED
With 100 lbs of thrust1, Force Kraken is the most powerful trolling motor on the market.
POWER THAT LASTS
Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.
WHISPER QUIET
Don’t spook the fish; the motor is extremely quiet above and below the water.
PURPOSE-BUILT DESIGN
This trolling motor is optimised to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design.
DESIGNED TO ENDURE
The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.
PERFECT FOR DEEP V HULLS

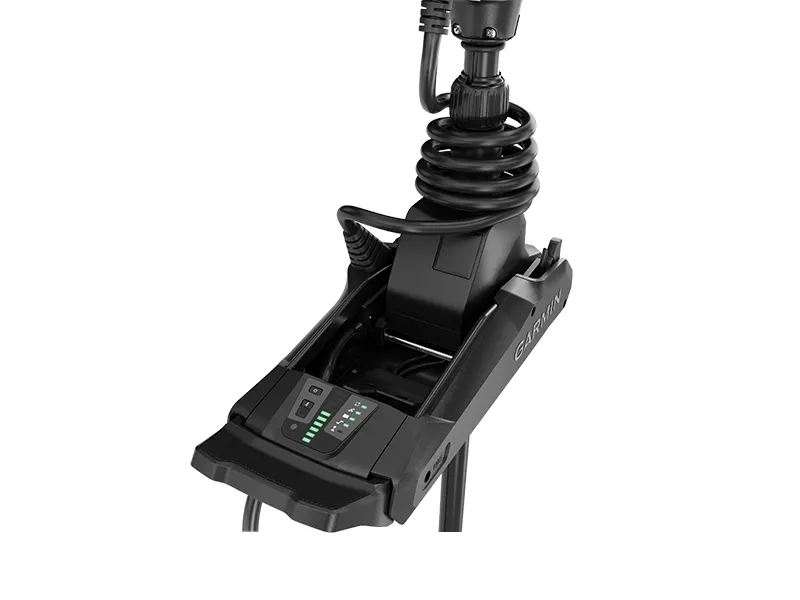

Get easy installation where bow space is limited, thanks to the pivot-style mount. The 63″ and 75″ shaft lengths accommodate many different boat sizes and deck configurations.
Specifications
General
| COLOUR | Black / White |
|---|---|
| FOR USE IN | Freshwater, brackish water and saltwater |
| MOUNT STYLE | Pivot-style mount |
| MAX THRUST | 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc |
| VOLTAGE | 24 V or 36 V |
| ELECTRIC STEERING | Yes |
| BUILT-IN HEADING SENSOR | Yes |
| BUILT-IN GPS | Yes (dual frequency GPS) |
| WARRANTY | 3-year, limited lifetime on shaft |
| WATER RATING | IPX7 |
| MOUNTING LOCATION | Bow |
| WIRELESS REMOTE | Yes (included) |
| FOOT PEDAL COMPATIBLE | Yes |
| BATTERY INDICATOR | Yes |
| VARIABLE SPEED CONTROL | Yes (20 steps) |
| LIGHTED DIRECTION INDICATOR | Yes |
| QUATIX REMOTE CONTROL SUPPORTED |
Sonar Features
| FREQUENCIES SUPPORTED | CHIRP sonar: High-wide CHIRP (150-240 kHz) ClearVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) SideVü:455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) |
|---|---|
| TRANSMIT POWER | Traditional: 350 W ClearVü/SideVü 500 W |
| MAXIMUM DEPTH | CHIRP sonar: 800 ft freshwater ClearVü: 400 ft; SideVü: 500 ft |
| DEPTH/SPEED/TEMPERATURE | Depth and temperature |
| NUMBER OF PINS | 12-pin (orange connector) |
| LIVESCOPE CABLE INTEGRATION | Yes (LiveScope transducer and Kraken Mounting Bracket purchases required) |
Autopilot Features
| ROUTE FOLLOWING | Yes |
|---|---|
| ANCHOR LOCK | Yes |
| ANCHOR LOCK JOG | Yes |
| HEADING HOLD | Yes |
| CRUISE CONTROL | Yes |
| GESTURE FEATURES | Yes (manual+, heading hold+, jog+) |
Foot Pedal Features
| DIMENSIONS | 12″ L x 9″ W x 4 1/2″ H |
|---|---|
| WIRELESS COMMUNICATION | Yes |
| POWER INSTALLATION | 12V/24V/36V wired or battery powered (2 AA) |
| AA BATTERY LIFE | 1 full season |
| WATER RATING | IPX7 |
| ADJUSTABLE PEDAL RESISTANCE |
Remote Features
| DISPLAY SIZE | 1.2″ (30.4 mm) diameter |
|---|---|
| DISPLAY RESOLUTION | 240 x 240 pixels |
| DISPLAY TYPE | Colour, sunlight-visible, transflective memory-in-pixel (MIP) |
| CHARTPLOTTER USER-PROGRAMMABLE KEYS | Yes |
| AUTOPILOT FEATURE CONTROL | Yes |
| WATER RATING | IPX7 |
| BATTERY LIFE | Typical use with backlight at low, 43.2 weeks |
| FLOATS |
Garmin Force Kraken Trolling Motor Installation Instructions
Garmin Force Kraken Trolling Motor Owners Manual
