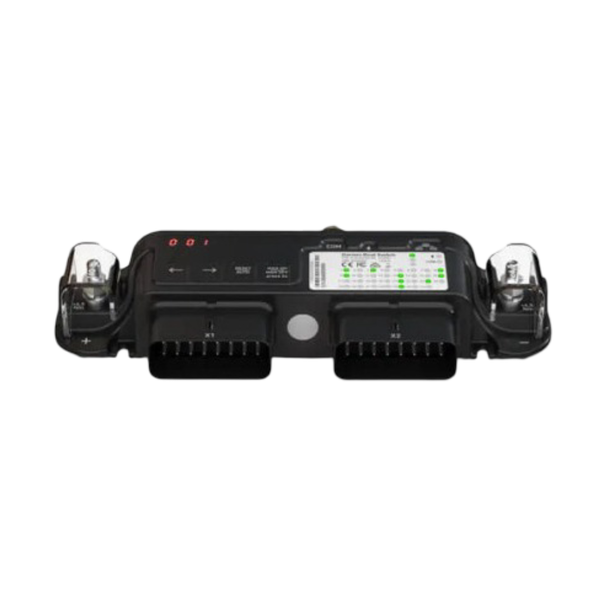

Description
QUALITY SWITCHING. SIMPLE INSTALLATION.
Get the integrated-boat experience with digital switching that allows you to operate onboard electrical functions right from your GPSMAP® or ECHOMAP™ chartplotter. Full NMEA 2000 connectivity to connect to your systems
- Reduce reliance on traditional switches and fuses. Add digital control and software current monitoring.
- Operate lights, pumps, horn and more. Just tap your compatible chartplotter.
- Fill up or empty out? See levels in four tanks — such as fuel, freshwater, greywater, blackwater and livewell.
- See system status. Monitor battery voltage, bilge pump operation and more.
- Set it up your way. Position and name switches with the easy-to-use interface.
- Retrofit into your boat. It requires no special tools or configuration.
Specifications
General
Dimensions (WxHxD) (unit only)9.1″ x 4.2″ x 1.5″ (230 x 106 x 38 mm)Weight (unit only)14.1 oz (400 g)Ambient temperature-20° C to +55° C
Enclosure water ratingIP65
CommunicationCAN-bus NMEA 2000® network, LEN-0
Output
High side13 ch 10A, 7 ch 5AOutput
Ground contact switch input15Bilge pump monitor2
Analog Input
Volt3 @ 0-16 V +/-1%Resistance2 @ 0-1500 ohm +/- 5%
Power Supply
Maximum current50APower off current consumption60mA
Supply voltage (12V)9-16VDC
Connector
NMEA 2000®Micro 5-pin M12 maleIn The Box
- Garmin Boat Switch
- Garmin Boat Switch Harness X1
- Garmin Boat Switch Harness X2
- Installation instructions
For Compatable Devices Click Here
For Relevant Manuals Click Here
