Dometic Seastar Steering Cylinder BA175-9TM 9" 17.6 cu in

The Dometic Seastar BA175-9TM is a aluminium and stainless steel hydraulic inboard steering cylinder with 9" stroke, 17.6 cu in capacity.

Features

• Low friction hydraulic steering system
• Configurations for most inboards
• Easy installation on single or dual rudders
• Adjustable O-ring sealed fittings c/w bleeder fittings
• Anodized aluminum or heavy duty brass cylinders
  (two axis articulation)
• Meets A.B.Y.C. standards
• Meets N.M.M.A. certification requirements

Specifications

• Travel: 9"
• Capacity: 17.6 cu.in
• Cylinder Diameter: 1.75"
• Shaft: 0.75" diameter (19.1mm)
• Eye Terminal End: 5/8" diameter hole
• Torque: @ 1000psi @ 35° = 5741in/lbs

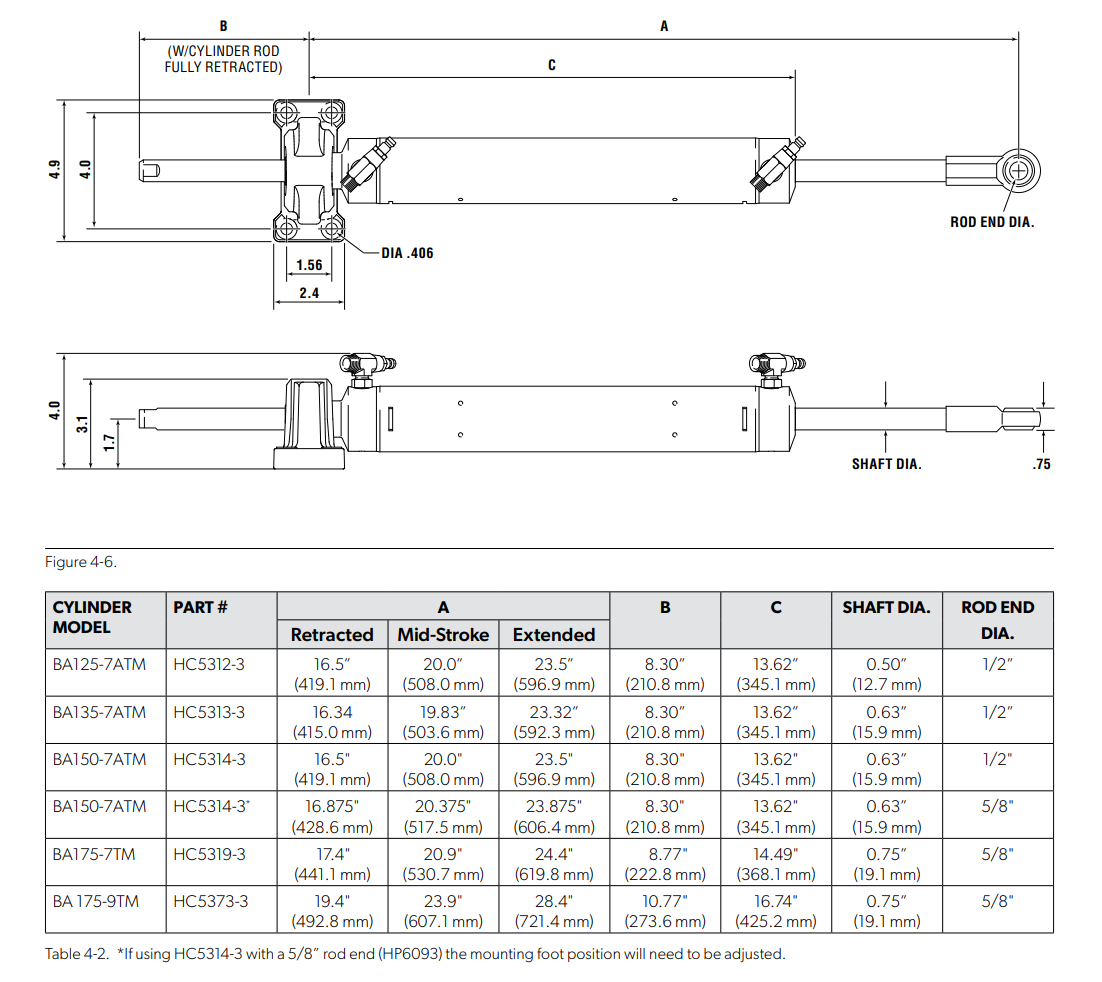

Dimensions

Follow detail for model HC5373-3

Technical Files

SeaStar's Steering Brochure

SeaStar's Installation Manual
