BMM

BMM Galvanised KT-NE Blocks - Single Nylon Sheave with Swivel Eye

€76.33 - €180.33

Description

Markussens galvanised, single nylon sheave pulley blocks with swivel eye for rope use only. Suitable for commercial use and available in 3 sizes, rated 1, 2 & 3 Ton WLL

Sizes Available

  • KT1-NEG Block Nylon 1 Ton - WLL Rated 1 Ton Max Load
  • KT2-NEG Block Nylon 2 Ton - WLL Rated 2 Ton Max Load
  • KT3-NEG Block Nylon 3 Ton - WLL Rated 3 Ton Max Load

Test certificates available for blocks at extra charge

Bearings and Sheaves

Nylon sheaves with greaseable plain bearing ( Grease nipple in shaft end)

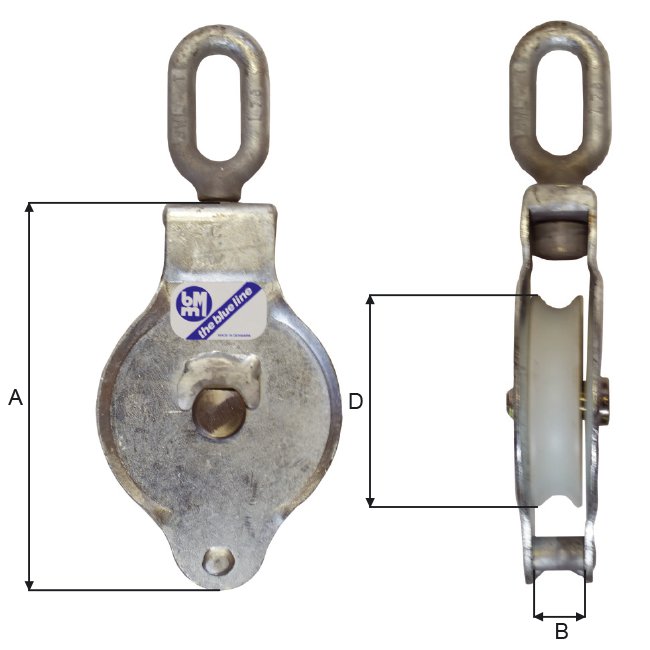

Dimensions

Part no. WLL 5:1 A B D Becket dia. Max Rope Weight
  ton mm mm mm mm mm kg
KT1-NEG 1.0 163 22 80 16 16 1.3
KT2-NEG 2.0 195 24 110 22 18 2.1
KT3-NEG 3.0 257 28 150 31 20 4.1
