Description
Markussens galvanised, double nylon sheave pulley blocks with swivel eye for rope use only. Suitable for commercial use and available in 3 sizes, rated 1, 2 & 3 Ton WLL
Sizes Available
- KT1D-NEG Block Nylon 1 Ton - WLL Rated 1 Ton Max Load
- KT2D-NEG Block Nylon 2 Ton - WLL Rated 2 Ton Max Load
- KTD3-NEG Block Nylon 3 Ton - WLL Rated 3 Ton Max Load
Test certificates available at extra cost
Bearings and Sheaves
Nylon sheaves with greasable plain bearing ( Grease nipple in shaft end)

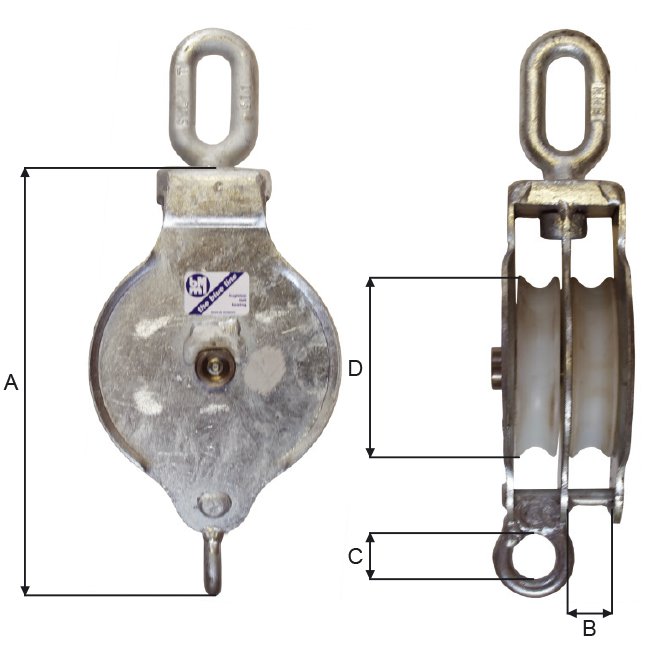

Dimensions
Model no. | WLL 5:1 | A | B | C | D | Max Rope | Weight |
ton | mm | mm | mm | mm | mm | kg | |
KT1D-NEG | 1.0 | 187 | 22 | 16 | 80 | 16 | 1.9 |
KT2D-NEG | 2.0 | 224 | 24 | 22 | 110 | 18 | 3.3 |
KT3D-NEG | 3.0 | 296 | 28 | 31 | 150 | 20 | 6.6 |
