Blue Sea
Blue Sea Power Distribution AC Main Panel - Voltmeter - 3 Position 8143
- SKU:
- BS8143
- UPC:
- 632085081430
- MPN:
- 8143
Description
Features
- Red reverse polarity indicating LED
- "ON" indicating LEDs installed in all circuit positions
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
Specifications
- Number of positions: 3
- Nominal voltage: 230 V AC
- Height: 7.50" (190.5 mm)
- Width: 5.25" (133.35 mm)
- Weight: 0.91 kg (2.00 lb)
Included Accessories
- LED - 230 V AC Green
- LED - 230 V AC Red
- Basic AC Panel Label Set - 30 Labels

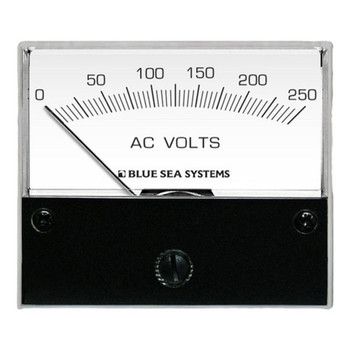

- AC Micro Voltmeter - 0 to 250 V AC (Meter)
- A-Series White Toggle Circuit Breaker - Single Pole 8 A (Branch)
- A-Series White Toggle Circuit Breaker - Double Pole 16 A (Main)
Optional Extra
AC Isolation Cover - 5-1/4 x 7-1/2 x 3
