Blue Sea C-Series Flat Rocker Circuit Breaker - Single Pole - 10A

SKU:
BS7541
UPC:
632085075415
€48.95

Description

Features

  • “Trip Free”-cannot be held closed after trip
  • Ignition protected-safe for installation aboard gasoline powered boats
  • Combines switching and circuit protection into a single device
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Color actuator indicates “OFF” position
  • Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching

Specifications

  • Maximum voltage: 240 V AC/48 V DC
  • Amperage: 10 A
  • Actuator style: Flat rocker
  • Number of Poles: 1
  • Circuit breaker type: Magnetic hydraulic - trip free
  • Terminal stud torque: 3.95 N-m (35 inch-lb)
  • Minimum operating temperature: -40 degree C
  • Maximum operating temperature: 85 degree C
  • Screw terminal torque: 6 inch-lb (0.68 Nm)
  • Mounting screw: 6-32 Stainless steel
  • Mounting screw torque: 0.68 N-m (6 inch-lb)
  • Interrupt capacity: 3000 A @ 120 V AC, 3500 A @ 240 V AC
  • Interrupt capacity: 5000 A @ 32 V DC
  • Switching cycles: 10000
  • Terminal stud: 1/4-20 Tin-Plated brass
  • Weight: 0.13 kg (0.28 lb)

Certifications

  • CE
  • SA
  • IGNITION PROTECTED
  • ISO 8846 Marine
  • SAE J1171 Marine
  • TUV
  • UL 1077
  • UL 1500

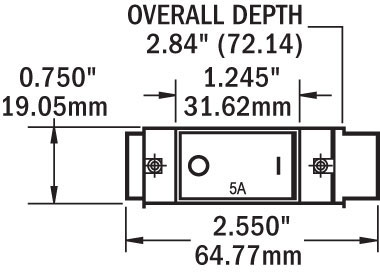

Dimension Drawing

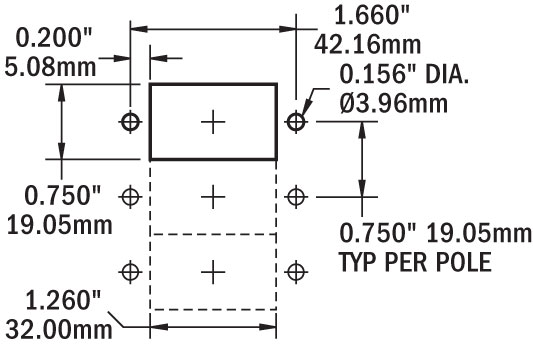

Cutout Template

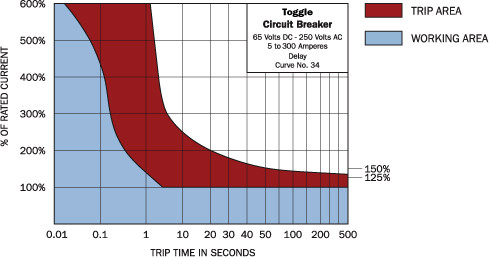

Trip Delay Curve

Opening speed, or delay, defines the relationship between the percentage by which the fuse or circuit breaker is operating over its Amperage Rating and the length of time that will be required for it to open. The opening of a fuse or circuit breaker is determined not just by the amperage rating, but by the amount of time and the percentage over its amperage rating at which it is being operated. The higher the % of current flow to amperage rating, the faster the circuit protector will open.
