Description

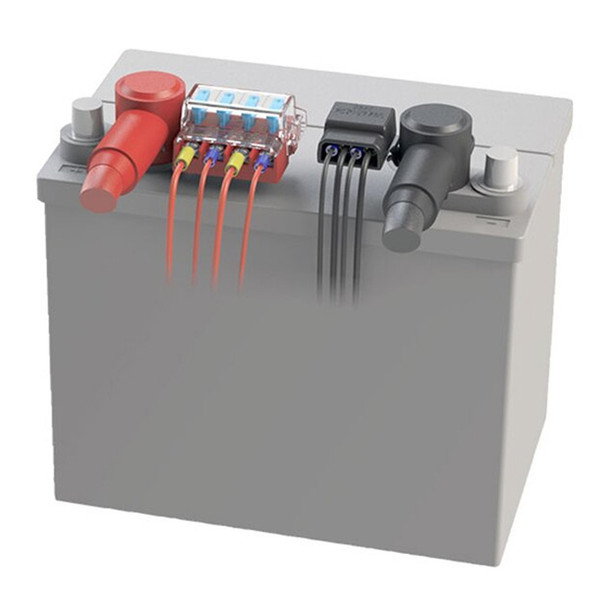

Easily add 4 fused circuits to the terminal of a battery provides power to new accessories in your boat or vehicle.
Features
- Mounts on the battery terminal stud
- Screw terminals for securing wires
- Nylon insulated ring terminals included for each screw terminal
- Accepts small format circuit labels
- Insulating cover meets ABYC/USCG insulation requirements
- Ignition Protected–meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Includes a 4-circuit negative busbar
- Includes write on labels
- Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
Specifications
- Bus material: Tin-Plater Copper C11000
- Number of Circuit: 4
- Maximum voltage: 32 V DC
- Maximum amperage: 100 A per block, 30 A per circuit
- Mounting hole: 3/8" (M10) Stud
- Screw terminal torque: 2.03 N-m (18 inch-lb)
- Screw terminal type: #8-32
- Weight: 0.23 kg (0.50 lb)
- Certification: IGNITION PROTECTED, ISO 8846 Marine, SAE J1171 Marine
Included Accessories
- ST Blade Battery Terminal Mount Fuse Block
Optional Accessories
- Any ATO-ATC Fuses
- Any easyID Fuses
