Description
Features
- Heavy duty 18 gauge wire
- Internal strain relief and cord seal
- Front panel, rear panel, or surface mount
- Twist lock system-plug locks securely into socket
- Large contact surfaces for good electrical connection
- Nickel plated copper alloy used for all current carrying components
- Designed to withstand the rigors of wet environments and constant vibration
- Socket features a watertight cap, easy installation and interlocks with the plug
- Plug features an"ON" indicating LED, moisture proof sealing ring, strain relief, and a built-in 10 A fuse
- Plug has a moisture proof sealing ring around the shaft to keep out spray and make it seat firmly in the outlet
Specifications
- Maximum voltage: 12 V DC
- Maximum voltage rating: 15 V DC
- Maximum amperage plug: 10 A DC
- Maximum amperage socket: 15 A DC
- Cord reaches: Up to 6 ft
- Weight: 0.23 kg (0.50 lb)

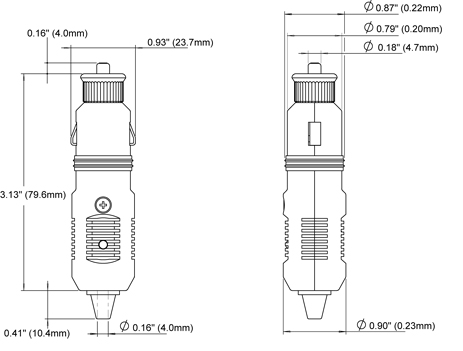

Pulg Dimension Drawing

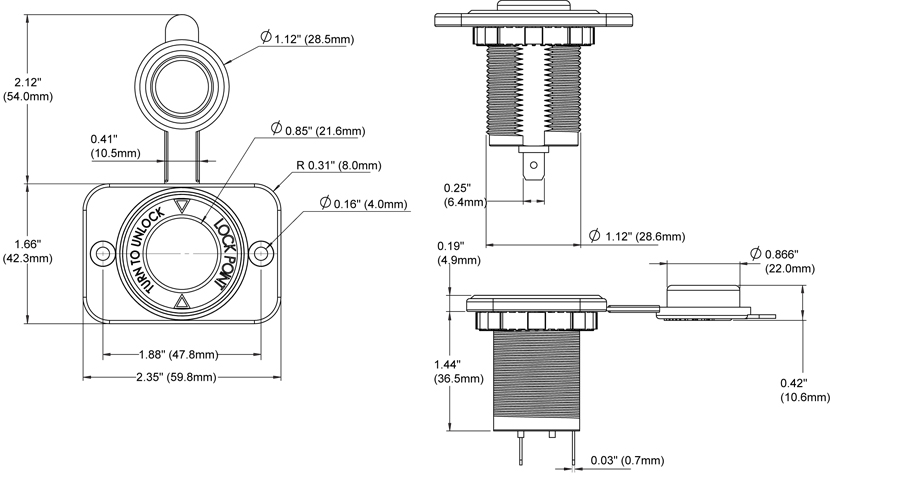

Socket Dimension Drawing
Optional Extra

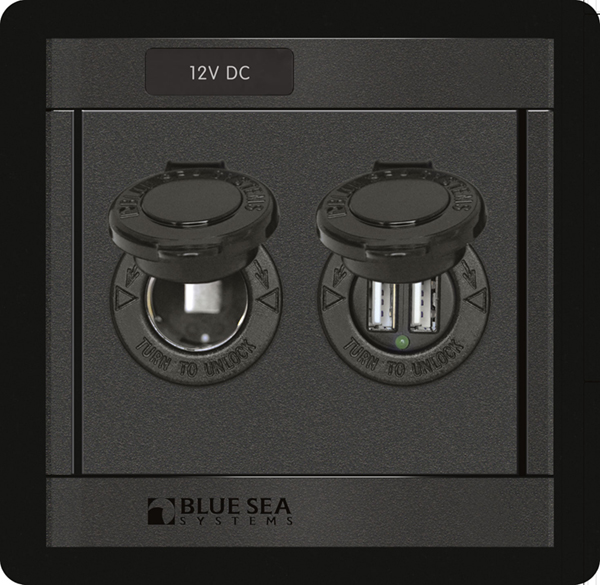

360 Panel - 12V DC Socket and Dual USB Charger

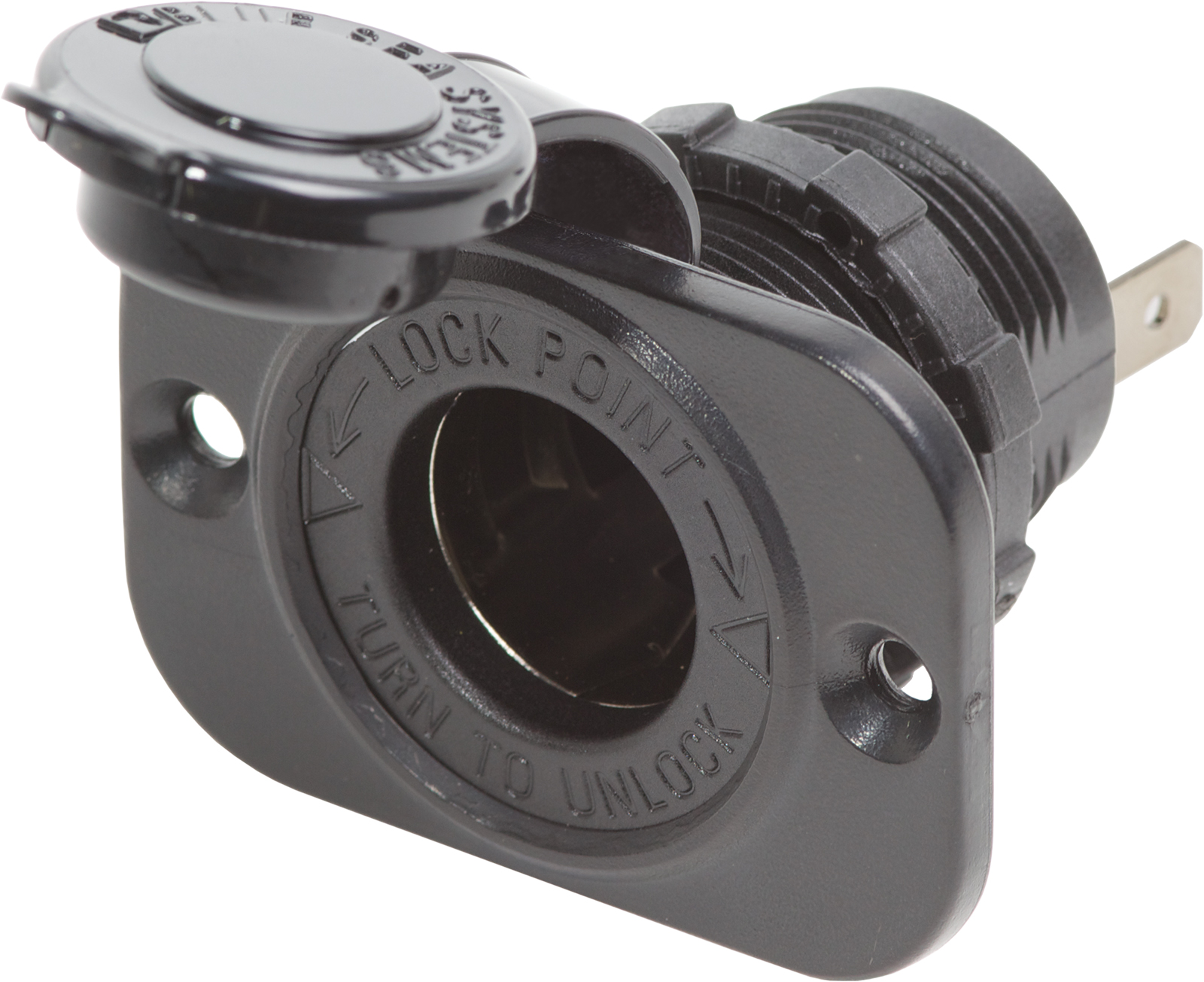

12 Volt Dash Socket

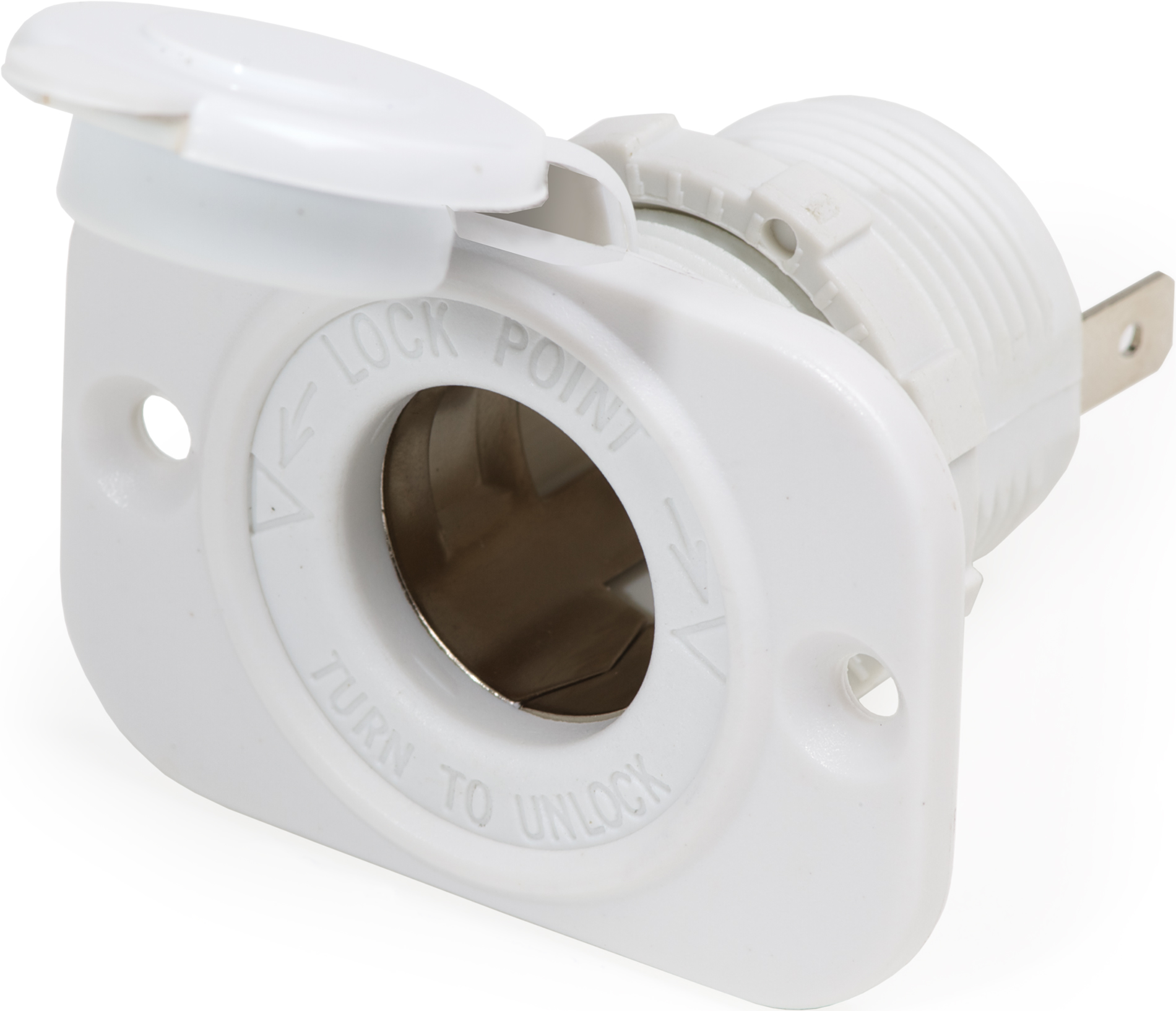

12 Volt Dash Socket - White
