Blue Sea WeatherDeck Toggle Switches

Blue Sea WeatherDeck Toggle Switches, all models

Key Features

• Specially manufactured by Carling Technologies for use in Blue Sea Systems' WeatherDeck® Panels
• When mounted with a WeatherDeck® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
• Nickel-plated brass and phenolic non-corrosive construction

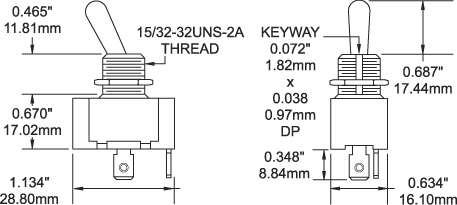

Dimension Drawing

Specifications

4150

Action	OFF-ON
Pole / Throw	SPST
Poles	1
Common Applications	lights
Maximum Amperage	15A @ 125V AC 15A @ 12V DC 10A @ 250V AC
Terminal Type	Quick Connect Tab
Number of Terminals	2
Terminal Size	0.25in (6.35 mm)
Weight	0.10lb (0.05 kg)

4151

Action	OFF-(ON)
Pole / Throw	SPST
Poles	1
Common Applications	horn or windshield wipers
Maximum Amperage	15A @ 125V AC 15A @ 12V DC 10A @ 250V AC
Terminal Type	Quick Connect Tab
Number of Terminals	2
Terminal Size	0.25in (6.35 mm)
Weight	0.10lb (0.05 kg)

4152

Action	ON-OFF-ON
Pole / Throw	SPDT
Poles	1
Common Applications	combining nav lights or anchor light with independent bulbs
Maximum Amperage	15A @ 125V AC 15A @ 12V DC 10A @ 250V AC
Terminal Type	Quick Connect Tab
Number of Terminals	3
Terminal Size	0.25in (6.35 mm)
Weight	0.10lb (0.05 kg)

4153

Action	(ON)-OFF-ON
Pole / Throw	SPDT
Poles	1
Common Applications	bilge pumps
Maximum Amperage	15A @ 125V AC 15A @ 12V DC 10A @ 250V AC
Terminal Type	Quick Connect Tab
Number of Terminals	3
Terminal Size	0.25in (6.35 mm)
Weight	0.10lb (0.05 kg)

4154

Action	(ON)-OFF-(ON)
Pole / Throw	SPDT
Poles	1
Common Applications	labeled dimmer
Maximum Amperage	15A @ 125V AC 15A @ 12V DC 10A @ 250V AC
Terminal Type	Quick Connect Tab
Number of Terminals	3
Terminal Size	0.25in (6.35 mm)
Weight	0.10lb (0.05 kg)

4155

Action	ON-OFF-ON
Pole / Throw	DPDT
Poles	2
Common Applications	combining nav lights with anchor light with shared bulb
Maximum Amperage	5A
Maximum Voltage	30V DC
Terminal Type	Quick Connect Tab
Number of Terminals	6
Terminal Size	0.25in (6.35 mm)
Weight	0.10lb (0.05 kg)

Blue Sea Weatherdeck Toggle Switch Cutout Template
