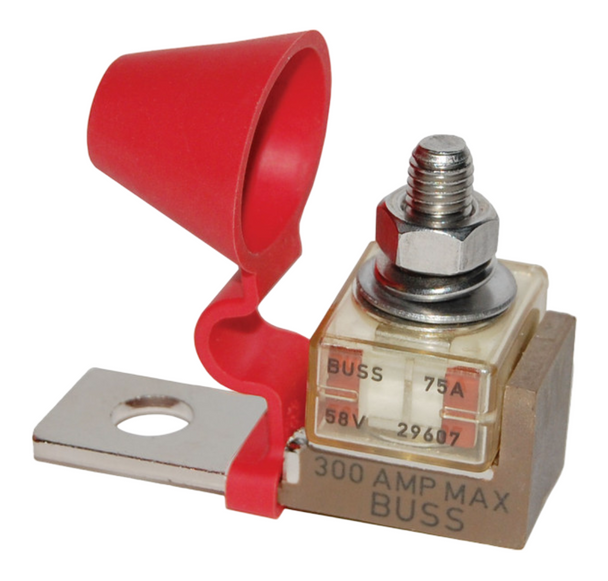

Blue Sea MRBF Terminal Fuse Block - 30 to 300A

Blue Sea MRBF, Terminal Fuse Block - 30 to 300A for use with Marine Rated Battery Fuses.

Features

• Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
• Provides high current protection in tight space constraints
• Ignition protected when used with Blue Sea Systems' MRBF Terminal Fuse
• Isolated stud design uses standard M8 hardware and permits stacking of terminals
• Insulating cap prevents accidental shorts
• Accepts 5∕16" ring terminals
• Mounts on 3/8” terminal studs
• Fuse sold separately

Specifications

• Ignition Protected: No
• Maximum Amperage: 300A
• Maximum Voltage: 58V DC
• Terminal Stud: M8 (5/16")
• Maximum Torque: 75 in-lb (8.47 Nm)
• Weight: 0.16lb (0.07 kg)

Optional Fuses

To be orders additionally if required

See Fuse options here
