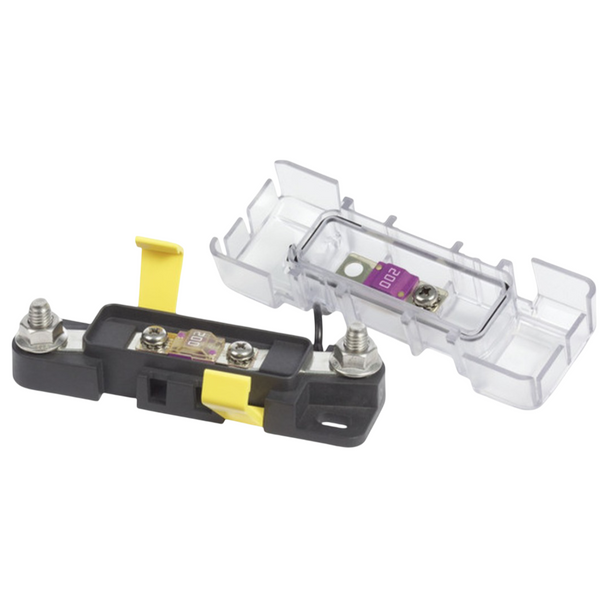

Description
Key Features
- Ignition protected for installation aboard gasoline or diesel powered boats
- Sealed cover protects fuses from the harsh marine environment
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- 200A maximum with 4/0 cable
- Accepts Blue Sea Systems Square Format standard or custom label
- Fuses sold separately
Specifications
Maximum Amperage  |
200A |
| Maximum Voltage | 32V DC |
| Stud Size | M8 x 1.25 |
| Fuse Screw | M5 x 0.8 |
| Recommended Screw Torque | 27 in-lb (3.05 N·m) |
| Recommended Stud Torque | 120 in-lb (13.56 N·m) |
| Ring Terminal Size | M8 (5/16") |
| Weight | 0.15lb (0.07 kg) |
Dimension Drawing
