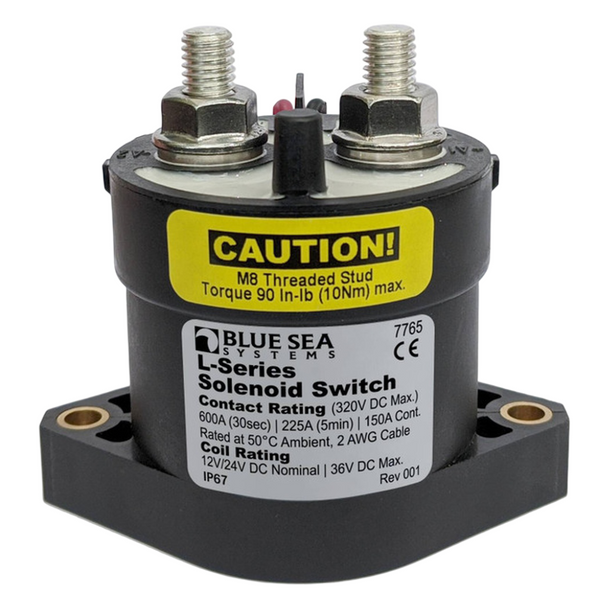

Blue Sea L Series Solenoid 12/24v 150A - Model 7765

The Blue Sea L Series Solenoid, Model 7765, 150A 12/24V is ideal for switching DC subpanels, thrusters, windlass, inverters and other medium-amp DC loads. L-Series Solenoid Switches are remotely activated using a low amp switch and smaller gauge wire.

Features

• Continuous duty, SPST - Normally Open
• Hermetically sealed contacts
• Activated by a remote ON–OFF switch BS-8230 (sold separately)
• Coil control circuit minimizes heating and amperage draw
• Continous Rating 150A
• CE Approved
• IP67 Rated

Specifications

• Control Circuit Connection: 22 AWG Tinned Wire
• Nominal Voltage: 12V DC, 24V DC
• Coil Function: Normally Open
• Maximum Voltage: 320V DC
• Amperage Operating Current continuous: 0.13A @ 12 V, 0.07A @ 24 V
• Input Voltage: 9-36V DC
• Amperage Operating Current when changing state: 3.8A
• Terminal Stud: M8 (accepts 5/16" terminals)
• Terminal Stud Torque: 90 in-lb (10.17 Nm) max
• Continuous Rating: 150A
• Intermittent Rating: 225A (5 min)
• Cranking Rating 30 sec: 600A
• Mounting Screw: #10 or M5
• Mounting Screw Torque: 30 in-lb (3.39 Nm) max, 15 in-lb (1.69 Nm) min
• Operating Temperature Range: –40°C to +85°C
• Weight: .95Lb (0.43 Kg)

Tech Tip- Solenoid Switch vs Remote Battery Switch

Solenoid Switch: An electronic switch with no manual control,
for circuits where a manual battery disconnect is offered
elsewhere in the circuit.
Remote Battery Switch: A solenoid or relay with a manual
control switch allowing for switching if control circuit
is compromised and for service lockout.
