Description
Blue Sea DC Micro Voltmeter backlit meter face (separate 12 or 24 V DC backlight connections).
Specifications
- Face size: 2" (50.8 mm)
- Function: 8 V to 16 V
- Backlighting amperage: 16 mA @ 12 V DC, 20 mA @ 24 V DC
- Meter current: 1 mA at full scale
- Weight: 0.09 kg (0.19 lb)

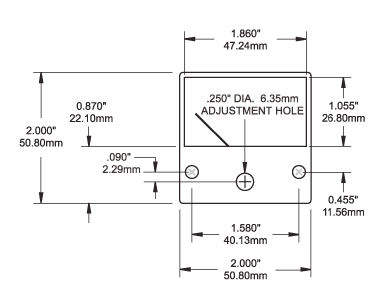

Dimension Drawing
Mounting Diagram (surface mount)

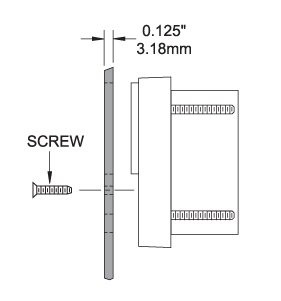

Mounting Diagram (panel mount)
Technical File
