Blue Sea

Blue Sea Contura Remote Control Switch for ML ACR -2146

SKU:
BS2146
UPC:
632085082826
€30.95
Frequently bought together:

Description

Blue Sea SPDT Remote Control Contura Switch - OFF-AUTO-ON supplied as standard with Blue Sea ML automatic charging relay models, 7620,7621,7622 & 7623

Features

  • 3 Position  OFF-AUTO-ON
  • LED suits 12/24v
  • Vibration, shock, thermoshock, moisture and salt spray resistant
  • Specially manufactured for mounting in Blue Sea Systems" water resistant panels
  • Ignition Protected - Safe for installation aboard gasoline powered boats
  • Meets UL1500 and ISO8846 ignition protection requirements

Actuators

This switch is supplied with a blank illuminated Actuator - Other Actuators are avaiable labelled for purpose i.e. Lights, Fan etc

Specification

Amperage Max - Operating 20A @ 12V DC, 15A @ 24V DC
Amperage Operating Current 18mA
Temperature Range -40°C (-40°F) to 85°C (185°F)
Pole/Throw - SPDT
Lighting - LED rated 100,000 hours half-life ( 12-24v)
Seals -  Internal and external gasket panel seal
Mounting Hole - 36.83 mm x 21.08 mm


Regulatory


Meets UL 1500 and ISO 8846 external ignition protection requirements. Switch front is IP67 when mounted
with gasket in place – protected against immersion up to 1 meter for 30 minutes

Mounting Accessories

The Contura range of switches retrofits many manufactured panels

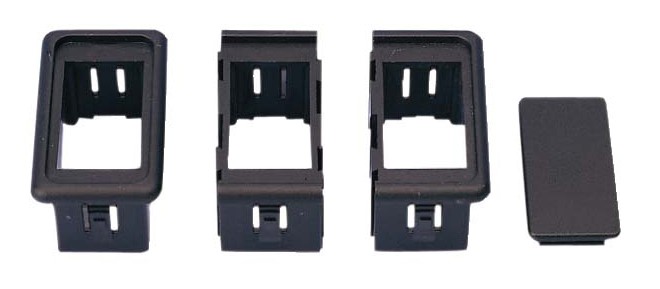

Use the Panel Mounts below to create a custom install. The mounts allow for single or multiple switch installation and clip together to form a bank of switches

Contura Switch Single Panel Mount  Part No 58142  Order here

Contura Switch End Panel Mount  Part No 58140  Order here

Contura Switch Middle Panel Mount  Part No 58141  Order here

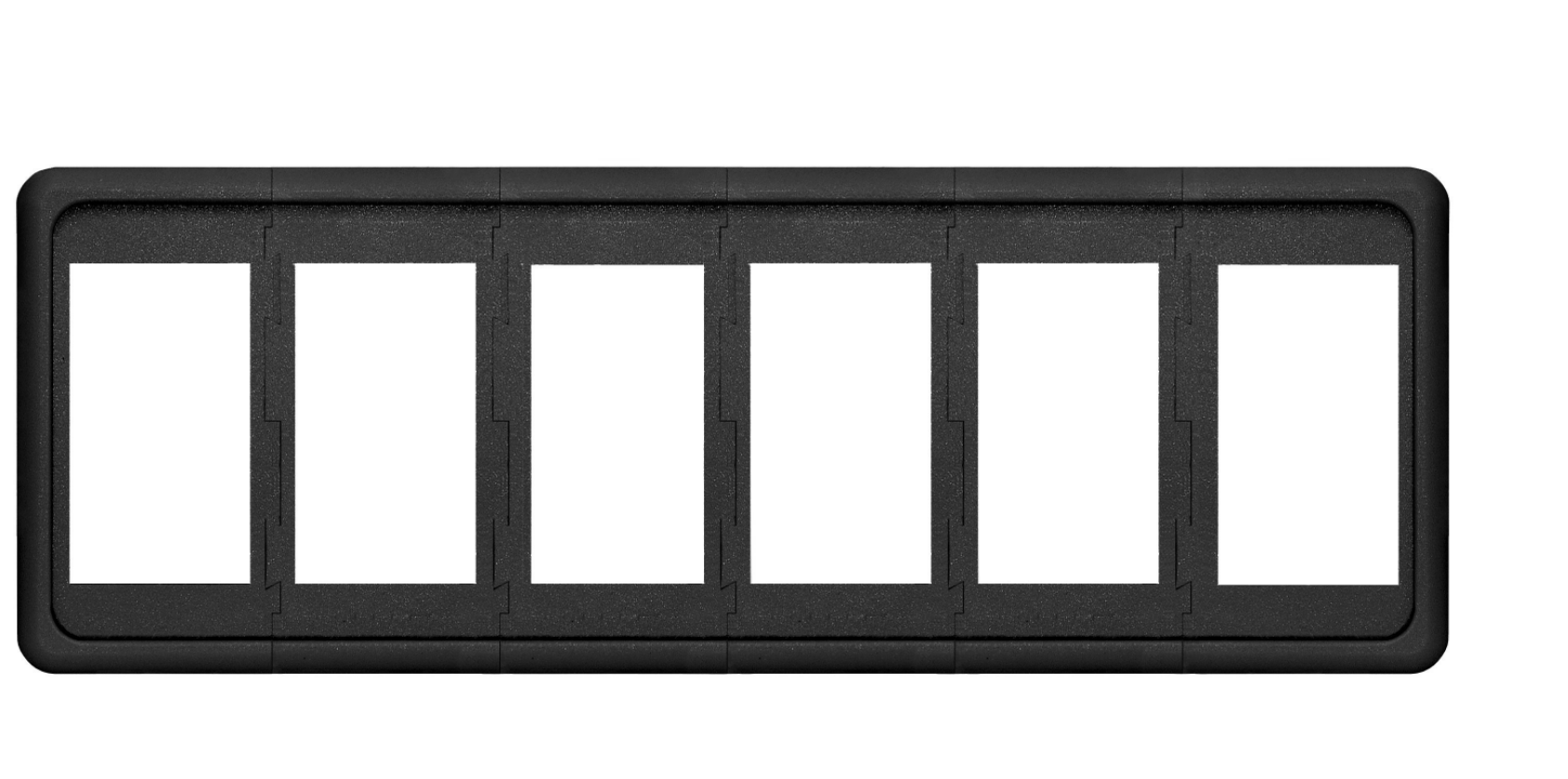

Blue Sea Contura Switch Mounting Panel - 6 Position- Order here

Contura Switch Blank Off Panel  -  Enquire
