Blue Sea A Series Toggle Circuit Breaker - Single Pole - 30A - Black

Bluesea 7220 A-Series Black Toggle Circuit Breaker - Single Pole 30A

Features

• Meets american boat and yacht council (ABYC) standards
• The industry standard circuit breaker for Blue Sea Systems" electrical panels
• Combines switching and circuit protection into a single device
• "Trip Free" design cannot be held "ON" during fault current condition

Specifications

Specifications
Amperage	30A AC 30A DC
Color	Black
Actuator Style	Toggle
Poles	1
Maximum Voltage	240V AC 32V DC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Interrupt Capacity	3000A @ 120V AC 1500A @ 240V AC [TUV] 3000A @ 240V AC [UL 1077] 7500A @ 65V DC
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10000
Terminal Screws	#10-32 Stainless Steel
Weight	0.17lb (0.08 kg)
Weight	0.17lb (0.08 kg)

Optional Accessories

• A-Series Single Blank Mounting Panel Part No BS8072

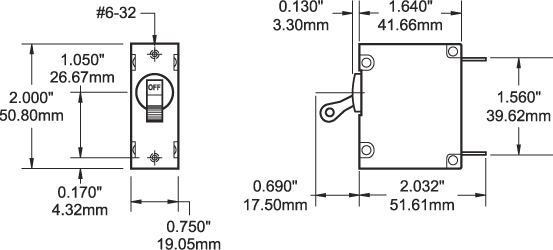

Dimension Drawing

Cutout Template

Technical File

EC Declaration of Conformity
